Product Model

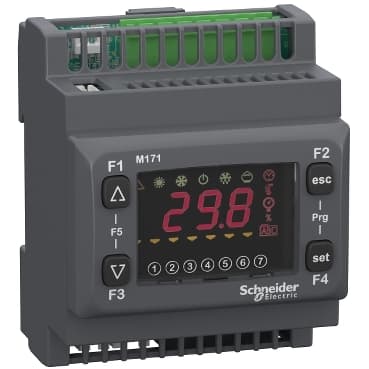

TM171ODM22R
Selling Points
- 1High-capacity power distribution for demanding applications.
- 2Compact design with enhanced thermal management.
- 3Advanced circuit protection and monitoring features.
- 4Compatible with a wide range of electrical systems.
- 5Durable construction for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Controller |
Product Specific Application | HVAC and pumping solution | Variant | Programmable |
Total inputs/outputs | 22 | Discrete input number | 6 |
Discrete output number | 1 open collector<br />3 relay outputs SPST with same common<br />2 relay outputs SPST with independent common | Discrete output current | 2 A relay |
Analogue input number | 2 configurable<br />3 analog input NTC | Analogue output number | 2 PWM/PPM<br />3 voltage 0...10 V |
Number of port | 1 LAN expansion bus<br />1 RS485 - screw terminal block Modbus serial link) | Input/output number | 5 analog output<br />6 digital input<br />5 analog input<br />6 digital output |
Discrete input logic | Sink or source (positive/negative) | Contacts usage | Volt-free contacts |
Analogue input type | voltage 0...5 V ratiometric)<br /> voltage 0...10 V<br />NTC temperature probe - 50...100 °C 0.1 °C<br /> current 0...20 mA/4...20 mA<br /> voltage 0...1 V | Sensor power supply | 12 V DC 85 mA<br />5 V DC 20 mA |
[Us] rated supply voltage | 12...24 V +/- 10 % AC<br />24 V +/- 10 % DC | Power consumption in W | 4 W |
Realtime clock | Built-in clock at -4…131 °F (-20…55 °C) | Display type | Four 7-segment display units |
Overvoltage category | II | Local signalling | 6 LEDs (red)<br /> 5 LEDs (green)<br /> for programmable 7 LEDs (amber) |
Mounting Support | Flush mounting | Width | 2.9 in (74 mm) |
Height | 1.3 in (32 mm) | Depth | 3.0 in (76 mm) |
Net Weight | 0.362 lb(US) (0.164 kg) | Directives | 2006/95/EC - low voltage directive<br />86/188/EEC - physical agents (noise) directive |
Standards | EN/IEC 60730 | Product Certifications | CSA<br />EAC<br />CE<br />cURus |
Ambient air temperature for operation | -4…131 °F (-20…55 °C) UL 60730-1 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative humidity | 10…90 % non-condensing | IP degree of protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
