Product Model

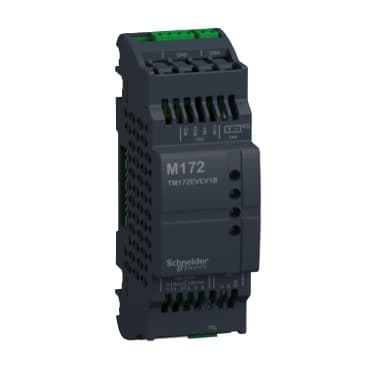

TM172EVEV1B
Selling Points
- 1High-performance power distribution with 3-phase capability.
- 2Compact design for easy installation in tight spaces.
- 3Advanced thermal management for extended lifespan.
- 4Integrated protection features for enhanced safety.
- 5Compatible with a wide range of industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Expansion unit |
Number of port | 1 CAN port - 1 removable 3-way screw connector | [Us] rated supply voltage | 24 V +/- 10 % AC<br />20...38 V DC |
Power consumption in W | 18 W 24 V DC | Maximum power consumption in VA | 23 VA 24 V AC |
Display Type | Without Display | Overvoltage category | I |
Mounting Support | DIN rail | Width | 1.4 in (36 mm) |
Height | 4.4 in (113 mm) | Depth | 2.4 in (60 mm) |
Net Weight | 0.196 lb(US) (0.089 kg) | Product Certifications | CE<br />CSA<br />EAC<br />RCM<br />cURus |
Standards | EN 60730-1<br />EN 60730-2-9<br />UL 60730-1<br />UL 60730-2-9<br />CAN/CSA-E60730-1<br />CSA E60730-2-9<br />IEC 6100-4-2<br />IEC 6100-4-3<br />IEC 6100-4-4<br />IEC 6100-4-5<br />IEC 6100-4-6<br />IEC 6100-4-11<br />EN 60068-2-27<br />EN 60068-2-6 Fc<br />UL94 (material V0) | Ambient air temperature for operation | -4…149 °F (-20…65 °C) |
Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) | Relative humidity | 5…95 % non-condensing |
IP degree of protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
