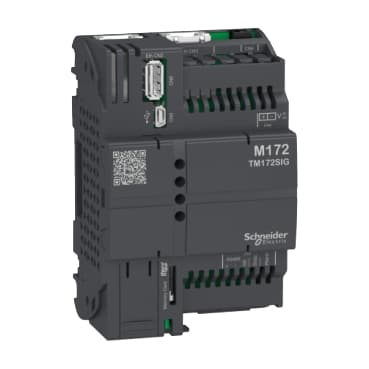

schneider TM172SIG

Selling Points

  • 1High-quality signal isolation for reliable performance.
  • 2Advanced safety features for secure operation.
  • 3Compact design for easy integration in industrial settings.
  • 4Robust construction for long-lasting durability.
  • 5Compatible with a wide range of industrial applications.
Product Details
TM172SIG
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M171/M172
Product or Component Type
Communication module
Concept
Modbus
communication port protocol
Modbus TCP/IP<br />HTTPS<br />FTPS<br />NTP<br />SMTPS<br />SNMP v2<br />SNMP v3<br />MQTT over TLS
Power consumption in W
8 W
Integrated connection type
2 Ethernet TCP/IP 2 x RJ45 in parallel - ethernet cable - embedded HTTPS server<br />1 USB (V2.0) port USB host port type A<br />1 USB (V2.0) port USB device port type mini-B<br />RS485 1 removable 3-way screw connector - twisted shielded pairs cable
Transmission rate
10/100/1000 Mbps for connecting Ethernet network<br />9600...115200 bauds RS485 link
Physical interface
10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 BASE-TX<br />RS485
Memory description
Internal RAM 256 MB<br />Flash 512 MB
Supply
External power supply
Local signalling
for power ON LED (green)<br /> for USER (programmable) LED (red)<br /> for USER (programmable) LED (yellow)<br /> for USER (programmable) LED (green)
Product Compatibility
Logic controller M172
Overvoltage category
I
Width
4.3 in (110 mm)
Height
2.4 in (60 mm)
Depth
2.8 in (72 mm)
Net Weight
0.364 lb(US) (0.165 kg)
Product Certifications
cURus<br />CSA<br />EAC<br />CE<br />RCM<br />UKCA
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
-4…131 °F (-20…55 °C)
Ambient Air Temperature for Storage
-22…158 °F (-30…70 °C)
Relative Humidity
5…95 % non-condensing
Pollution degree
2
Shock resistance
1 g 11 ms

Specifications may be subject to change without notice
