Product Model

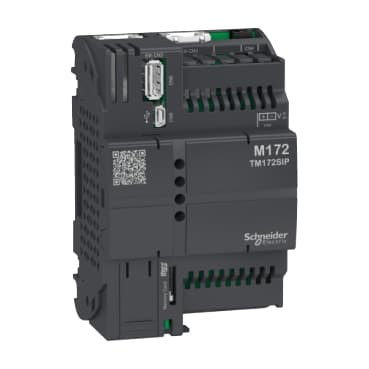

TM172SIP
Selling Points
- 1High reliability and durability for long-term performance.
- 2Compact design with low noise and high efficiency.
- 3Wide input voltage range for flexible integration.
- 4Overvoltage and undervoltage protection for safe operation.
- 5Compact size with high power density for space-saving installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Communication module |
Concept | Modbus | communication port protocol | Modbus TCP/IP<br />HTTPS<br />FTPS<br />NTP<br />SMTPS<br />SNMP v2<br />SNMP v3<br />MQTT over TLS |
Power consumption in W | 8 W | Integrated connection type | 2 Ethernet TCP/IP 2 x RJ45 in parallel - ethernet cable - embedded HTTPS server<br />1 USB (V2.0) port USB host port type A<br />1 USB (V2.0) port USB device port type mini-B |
Transmission rate | 10/100/1000 Mbps for connecting Ethernet network | Physical interface | 10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 BASE-TX |
Memory description | Internal RAM 256 MB<br />Flash 512 MB | Supply | External power supply |
Local signalling | for power ON LED (green)<br /> for USER (programmable) LED (red)<br /> for USER (programmable) LED (yellow)<br /> for USER (programmable) LED (green) | Product Compatibility | Logic controller M172 |
Overvoltage category | I | Width | 4.3 in (110 mm) |
Height | 2.4 in (60 mm) | Depth | 2.8 in (72 mm) |
Net Weight | 0.364 lb(US) (0.165 kg) | Product Certifications | cURus<br />CSA<br />EAC<br />CE<br />RCM<br />UKCA<br />UL 94 |
IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | -4…131 °F (-20…55 °C) |
Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) | Relative Humidity | 5…95 % non-condensing |
Pollution degree | 2 | Shock resistance | 1 g 11 ms |
Specifications may be subject to change without notice
