Product Model

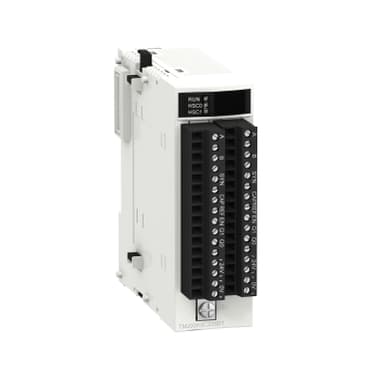

TM200HSC206DT
Selling Points
- 1High-speed motor control with advanced algorithms.
- 2Compact design for easy integration in various systems.
- 3Robust and reliable performance in demanding environments.
- 4Compatible with a wide range of motor types and applications.
- 5Enhanced safety features for secure operation and reduced downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Counter module |
Electrical Connection | 2 screw terminal blocks | Number of modules | 3 counter modules per TM238 base |
Discrete input number | 12 EN/IEC 61131-2 type 1 | Discrete output number | 4 |
Application specific I/O | Upcounting<br />Frequency meter<br />Downcounting<br />Axis following<br />Frequency generator<br />Period measurement | Counting mode | 8 mode configurable |
Counter inputs resolution | 31 bits + sign | Counting frequency | 60 kHz |
Cycle time | 1 ms | Input compatibility | Incremental signal encoder with 15...30 V source outputs<br />2 and 3-wire sensors (24 V) |
Type of cable | Shielded cable | Isolation between channels and internal logic | 1500 V for 1 minute |
Discrete input type | Auxiliary input IN_CAP<br />Auxiliary input IN_EN<br />Auxiliary input IN_REF<br />High-speed IN_A<br />High-speed IN_B<br />High-speed IN_SYNC | Discrete input logic | Positive logic (sink) |
Discrete input voltage | 24 V DC | Voltage state 1 guaranteed | 15...30 V |
Current state 1 guaranteed | 5 mA | Voltage state 0 guaranteed | <= 5 V |
Current state 0 guaranteed | <= 0.5 mA | Discrete input current | 2 mA 11 V |
Discrete output logic | Positive logic (source) | Discrete output voltage | 24 V DC 19.2...30 V |
Discrete output current | 0.5 A | Load current | 2 A per module<br />0.5 A per output |
Response time on output | <= 200 µs energisation/de-energisation | Maximum leakage current | 0.1 mA at state 0 |
Maximum voltage drop | <3 V at state 1 | Short-circuit protection | Automatic reset after disappearance of fault |
Output overload protection | 0.5...1.5 A trip current with automatic reset after fault disappearance, per o/p | Fallback status | Each channel held at its last value or set to the predefined value (0 or 1)<br />Faulty channel set to 0 |
Load inductance | L = 0.5/I²F | Load capacitance | 50 µF |
Local signalling | 1 display block | Current consumption | <= 100 mA 24 V DC internal supply<br /><= 100 mA 5 V DC internal supply<br /><= 2 A 24 V DC external power supply |
Mounting Support | 35 mm symmetrical DIN rail |
Specifications may be subject to change without notice
