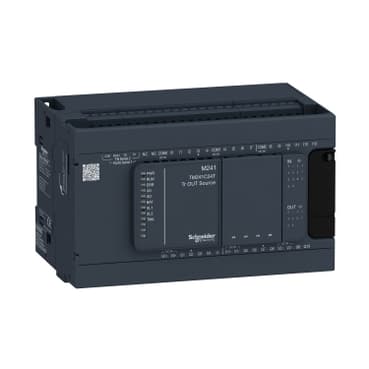

schneider TM241C24T

Selling Points

  • 1High power density for compact designs.
  • 2Wide input voltage range for flexibility.
  • 3High efficiency for reduced energy loss.
  • 4Built-in protection features for safety.
  • 5Compact footprint with easy installation.
Product Details
TM241C24T
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M241
Product or Component Type
Logic controller
[Us] rated supply voltage
24 V DC
Discrete input number
14, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output type
Transistor
Discrete output number
10 transistor 4 fast output
Discrete output voltage
24 V DC transistor output
Discrete output current
0.5 A transistor output Q0...Q9)<br />0.1 A fast output (PTO mode) Q0...Q3)
Discrete I/O number
24
Maximum number of I/O expansion module
7 (local I/O-Architecture)<br />14 (remote I/O-Architecture)
Supply voltage limits
20.4…28.8 V
Inrush current
50 A
Power consumption in W
32.6…40.4 W with max number of I/O expansion module)
Discrete input logic
Sink or source
Discrete input voltage
24 V
Discrete input voltage type
DC
Voltage state 1 guaranteed
>= 15 V input
Voltage state 0 guaranteed
<= 5 V input
Discrete input current
5 mA input<br />10.7 mA fast input
Input impedance
4.7 kOhm input<br />2.81 kOhm fast input
Response time
50 µs turn-on, I0...I13 input<br />50 µs turn-off, I0...I13 input<br /><= 2 µs turn-on, I0...I7 fast input<br /><= 2 µs turn-off, I0...I7 fast input<br /><= 34 µs turn-on, Q0...Q9 output<br /><= 250 µs turn-off, Q0...Q9 output<br /><= 2 µs turn-on, Q0...Q3 fast output<br /><= 2 µs turn-off, Q0...Q3 fast output
Configurable filtering time
1 µs fast input<br />12 ms fast input<br />0 ms input<br />1 ms input<br />4 ms input<br />12 ms input
Discrete output logic
Positive logic (source)
Output voltage limits
30 V DC
Maximum current per output common
2 A Q0...Q3 fast output<br />2 A Q4...Q7 output<br />1 A Q8...Q9 output
Maximum output frequency
20 kHz fast output (PWM mode)<br />100 kHz fast output (PLS mode)<br />1 kHz output
Accuracy
+/- 0.1 % 0.02…0.1 kHz fast output<br />+/- 1 % 0.1…1 kHz fast output
Maximum leakage current
5 µA output
Maximum voltage drop
<1 V
Maximum tungsten load
<2.4 W
Protection type
Short-circuit protection<br />Short-circuit and overload protection with automatic reset<br />Reverse polarity protection fast output
Reset time
10 ms automatic reset output<br />12 s automatic reset fast output
Memory capacity
64 MB system memory RAM
Data backed up
128 MB built-in flash memory backup of user programs
Data storage equipment
<= 16 GB SD card optional)
Battery type
BR2032 lithium non-rechargeable 4 year(s)
Backup time
2 years 77 °F (25 °C)
Execution time for 1 KInstruction
0.3 ms event and periodic task<br />0.7 ms other instruction
Application structure
4 cyclic master tasks<br />3 cyclic master tasks + 1 freewheeling task<br />8 external event tasks<br />8 event tasks
Realtime clock
With
Clock drift
<= 60 s/month 77 °F (25 °C)
Positioning functions
PTO 4 100 kHz)<br />PTO 4 transistor output 1 kHz)
Counting input number
4 fast input (HSC mode) 200 kHz<br />14 standard input 1 kHz
Control signal type
A/B 100 kHz fast input (HSC mode)<br />Pulse/direction 200 kHz fast input (HSC mode)<br />Single phase 200 kHz fast input (HSC mode)
Integrated connection type
Non isolated serial link serial 1 RJ45 RS232/RS485<br />Non isolated serial link serial 2 removable screw terminal block RS485<br />USB port mini B USB 2.0
Supply
Serial 1)serial link supply 5 V, <200 mA
Transmission rate
1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485<br />1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232<br />480 Mbit/s 9.8 ft (3 m) USB
Communication port protocol
Non isolated serial link Modbus master/slave
Local signalling
for PWR 1 LED (green)<br /> for RUN 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for I/O error (I/O) 1 LED (red)<br /> for SD card access (SD) 1 LED (green)<br /> for BAT 1 LED (red)<br /> for SL1 1 LED (green)<br /> for SL2 1 LED (green)<br /> for bus fault on TM4 (TM4) 1 LED (red)<br /> for I/O state 1 LED per channel (green)
Electrical connection
removable screw terminal block for inputs and outputs pitch 5.08 mm)<br /> removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum cable distance between devices
Unshielded cable <164.04 ft (50 m) input<br />Shielded cable <32.8 ft (10 m) fast input<br />Unshielded cable <164.04 ft (50 m) output<br />Shielded cable <9.8 ft (3 m) fast output
Insulation
Between supply and internal logic 500 V AC<br />Non-insulated between supply and ground<br />Between input and internal logic 500 V AC<br />Non-insulated between inputs<br />Between fast input and internal logic 500 V AC<br />Between output and internal logic 500 V AC<br />Non-insulated between outputs<br />Between fast output and internal logic 500 V AC
marking
CE
Surge withstand
1 kV power lines (DC) common mode IEC 61000-4-5<br />1 kV shielded cable common mode IEC 61000-4-5<br />0.5 kV power lines (DC) differential mode IEC 61000-4-5<br />1 kV relay output differential mode IEC 61000-4-5<br />1 kV input common mode IEC 61000-4-5<br />1 kV transistor output common mode IEC 61000-4-5
Mounting support
Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit
Height
3.5 in (90 mm)
Depth
3.7 in (95 mm)
Width
5.9 in (150 mm)
Net Weight
1.17 lb(US) (0.53 kg)
Standards
ANSI/ISA 12-12-01<br />CSA C22.2 No 142<br />CSA C22.2 No 213<br />IEC 61131-2:2007<br />Marine specification (LR, ABS, DNV, GL)<br />UL 508
Product Certifications
RCM<br />cULus<br />CE<br />UKCA<br />DNV-GL<br />ABS<br />LR
Resistance to electrostatic discharge
8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Resistance to fast transients
2 kV IEC 61000-4-4 power lines)<br />1 kV IEC 61000-4-4 serial link)<br />1 kV IEC 61000-4-4 input)<br />1 kV IEC 61000-4-4 transistor output)
Resistance to conducted disturbances
10 V 0.15...80 MHz IEC 61000-4-6<br />3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)<br />10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission
Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011<br />Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011<br />Radiated emissions 40 dBμV/m QP class A30…230 MHz IEC 55011<br />Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A230…1000 MHz IEC 55011
Immunity to microbreaks
10 ms
Ambient air temperature for operation
14…122 °F (-10…50 °C) vertical installation)<br />14…131 °F (-10…55 °C) horizontal installation)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative humidity
10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage)
IP degree of protection
IP20 with protective cover in place
Pollution degree
2
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
3.5 mm 5…8.4 Hz symmetrical rail<br />3 gn 8.4…150 Hz symmetrical rail<br />3.5 mm 5…8.4 Hz panel mounting<br />3 gn 8.4…150 Hz panel mounting
Shock resistance
15 gn 11 ms

Specifications may be subject to change without notice
