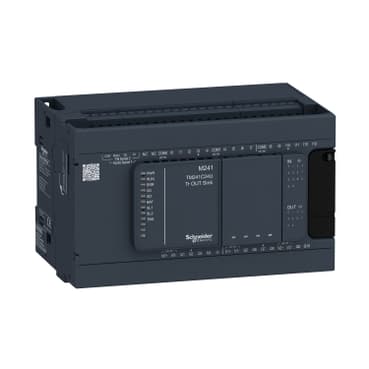

schneider TM241C24U

Selling Points

  • 1High reliability and durability for long-lasting performance.
  • 2Compact design with minimal footprint for space-saving installations.
  • 3Wide input voltage range for versatile usage in various environments.
  • 4High efficiency and low noise operation for reduced energy consumption.
  • 5Compliance with international safety standards for secure operation.
Product Details
TM241C24U
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M241
Product or Component Type
Logic controller
[Us] rated supply voltage
24 V DC
Discrete input number
14, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output type
Transistor
Discrete output number
10 transistor 4 fast output
Discrete output voltage
24 V DC transistor output
Discrete output current
0.5 A transistor output Q0...Q9)<br />0.1 A fast output (PTO mode) Q0...Q3)
Discrete I/O number
24
Maximum number of I/O expansion module
7 (local I/O-Architecture)<br />14 (remote I/O-Architecture)
Supply voltage limits
20.4…28.8 V
Inrush current
50 A
Power consumption in W
32.6…40.4 W with max number of I/O expansion module)
Discrete input logic
Sink or source
Discrete input voltage
24 V
Discrete input voltage type
DC
Voltage state 1 guaranteed
>= 15 V input
Voltage state 0 guaranteed
<= 5 V input
Discrete input current
5 mA input<br />10.7 mA fast input
Input impedance
4.7 kOhm input<br />2.81 kOhm fast input
Response time
50 µs turn-on, I0...I13 input<br />50 µs turn-off, I0...I13 input<br /><= 2 µs turn-on, I0...I7 fast input<br /><= 2 µs turn-off, I0...I7 fast input<br /><= 34 µs turn-on, Q0...Q9 output<br /><= 250 µs turn-off, Q0...Q9 output<br /><= 2 µs turn-on, Q0...Q3 fast output<br /><= 2 µs turn-off, Q0...Q3 fast output
Configurable filtering time
1 µs fast input<br />12 ms fast input<br />0 ms input<br />1 ms input<br />4 ms input<br />12 ms input
Discrete output logic
Negative logic (sink)
Output voltage limits
30 V DC
Maximum current per output common
2 A Q0...Q3 fast output<br />2 A Q4...Q7 output<br />1 A Q8...Q9 output
Maximum output frequency
20 kHz fast output (PWM mode)<br />100 kHz fast output (PLS mode)<br />1 kHz output
Accuracy
+/- 0.1 % 0.02…0.1 kHz fast output<br />+/- 1 % 0.1…1 kHz fast output
Maximum leakage current
5 µA output
Maximum voltage drop
<1 V
Maximum tungsten load
<2.4 W
Protection type
Short-circuit protection<br />Short-circuit and overload protection with automatic reset<br />Reverse polarity protection fast output
Reset time
10 ms automatic reset output<br />12 s automatic reset fast output
Memory capacity
64 MB system memory RAM
Data backed up
128 MB built-in flash memory backup of user programs
Data storage equipment
<= 16 GB SD card optional)
Battery type
BR2032 lithium non-rechargeable 4 year(s)
Backup time
2 years 77 °F (25 °C)
Execution time for 1 KInstruction
0.3 ms event and periodic task<br />0.7 ms other instruction
Application structure
4 cyclic master tasks<br />8 external event tasks<br />8 event tasks<br />3 cyclic master tasks + 1 freewheeling task
Realtime clock
With
Clock drift
<= 60 s/month 77 °F (25 °C)
Positioning functions
PTO 4 100 kHz)<br />PTO 4 transistor output 1 kHz)
Counting input number
4 fast input (HSC mode) 200 kHz<br />14 standard input 1 kHz
Control signal type
A/B 100 kHz fast input (HSC mode)<br />Pulse/direction 200 kHz fast input (HSC mode)<br />Single phase 200 kHz fast input (HSC mode)
Integrated connection type
Non isolated serial link serial 1 RJ45 RS232/RS485<br />Non isolated serial link serial 2 removable screw terminal block RS485<br />USB port mini B USB 2.0
Supply
Serial 1)serial link supply 5 V, <200 mA
Transmission rate
1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485<br />1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232<br />480 Mbit/s 9.8 ft (3 m) USB
Communication port protocol
Non isolated serial link Modbus master/slave
Local signalling
for PWR 1 LED (green)<br /> for RUN 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for I/O error (I/O) 1 LED (red)<br /> for SD card access (SD) 1 LED (green)<br /> for BAT 1 LED (red)<br /> for SL1 1 LED (green)<br /> for SL2 1 LED (green)<br /> for bus fault on TM4 (TM4) 1 LED (red)<br /> for I/O state 1 LED per channel (green)
Electrical connection
removable screw terminal block for inputs and outputs pitch 5.08 mm)<br /> removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum cable distance between devices
Unshielded cable <164.04 ft (50 m) input<br />Shielded cable <32.8 ft (10 m) fast input<br />Unshielded cable <164.04 ft (50 m) output<br />Shielded cable <9.8 ft (3 m) fast output
Insulation
Between supply and internal logic 500 V AC<br />Non-insulated between supply and ground<br />Between input and internal logic 500 V AC<br />Non-insulated between inputs<br />Between fast input and internal logic 500 V AC<br />Between output and internal logic 500 V AC<br />Non-insulated between outputs<br />Between fast output and internal logic 500 V AC
marking
CE
Surge withstand
1 kV power lines (DC) common mode IEC 61000-4-5<br />1 kV shielded cable common mode IEC 61000-4-5<br />0.5 kV power lines (DC) differential mode IEC 61000-4-5<br />1 kV relay output differential mode IEC 61000-4-5<br />1 kV input common mode IEC 61000-4-5<br />1 kV transistor output common mode IEC 61000-4-5
Mounting support
Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit
Height
3.5 in (90 mm)
Depth
3.7 in (95 mm)
Width
5.9 in (150 mm)
Net Weight
1.17 lb(US) (0.53 kg)
Standards
ANSI/ISA 12-12-01<br />CSA C22.2 No 142<br />CSA C22.2 No 213<br />IEC 61131-2:2007<br />Marine specification (LR, ABS, DNV, GL)<br />UL 508
Product Certifications
RCM<br />cULus<br />CE<br />UKCA<br />DNV-GL<br />ABS<br />LR
Resistance to electrostatic discharge
8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Resistance to fast transients
2 kV IEC 61000-4-4 power lines)<br />1 kV IEC 61000-4-4 serial link)<br />1 kV IEC 61000-4-4 input)<br />1 kV IEC 61000-4-4 transistor output)
Resistance to conducted disturbances
10 V 0.15...80 MHz IEC 61000-4-6<br />3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)<br />10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission
Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011<br />Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011<br />Radiated emissions 40 dBμV/m QP class A30…230 MHz IEC 55011<br />Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A230…1000 MHz IEC 55011
Immunity to microbreaks
10 ms
Ambient air temperature for operation
14…122 °F (-10…50 °C) vertical installation)<br />14…131 °F (-10…55 °C) horizontal installation)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative humidity
10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage)
IP degree of protection
IP20 with protective cover in place
Pollution degree
2
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
3.5 mm 5…8.4 Hz symmetrical rail<br />3 gn 8.4…150 Hz symmetrical rail<br />3.5 mm 5…8.4 Hz panel mounting<br />3 gn 8.4…150 Hz panel mounting
Shock resistance
15 gn 11 ms

Specifications may be subject to change without notice
