Product Model

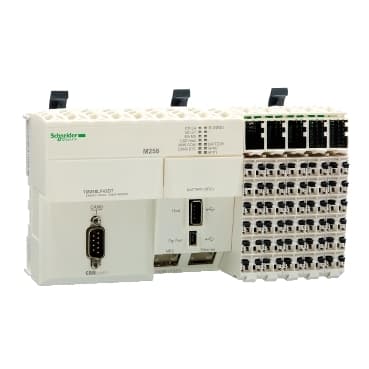

TM258LF42DTS0
Selling Points
- 1Compact design with 42 logic I/O for versatile machine control.
- 2Supplied with 24V DC power for reliable operation.
- 3Embeds 5 communication ports for seamless connectivity.
- 4Ideal for general machine control applications like packaging and conveying.
- 5Supports CANopen protocol for efficient data transfer.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M258 | Product or Component Type | Logic controller |
Product Specific Application | For solutions | Software Function | Applicatives functions blocks |
Discrete I/O number | 42 | Discrete output number | 12 output<br />4 fast output |
Discrete input number | 10 fast input<br />12 input<br />4 regular input | Discrete input logic | Sink fast input<br />Sink regular input<br />Source input |
Discrete input voltage | 24 V | Discrete input voltage type | DC |
Voltage state 1 guaranteed | >= 15 V fast input<br />>= 15 V fast output<br />>= 15 V regular input | Voltage state 0 guaranteed | <= 5 V fast input<br /><= 5 V fast output<br /><= 5 V regular input |
Discrete input current | 4 mA fast input<br />4 mA regular input | Input impedance | 6 kOhm fast input<br />6 kOhm regular input |
Configurable filtering time | 0 ms fast input/regular input and fast output<br />1.5 ms fast input/regular input and fast output<br />12 ms fast input/regular input and fast output<br />4 ms fast input/regular input and fast output | Anti bounce filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
Maximum cable distance between devices | <98.4 ft (30 m) fast input<br /> <98.4 ft (30 m) fast output<br /> <98.4 ft (30 m) regular input | Isolation between channels and internal logic | 500 Vrms AC |
Isolation between channels | None | Discrete output logic | Source |
Discrete output voltage | 24 V DC | Output voltage limits | 19.2...28.8 V |
Discrete output current | 4 mA fast output | [Us] rated supply voltage | 24 V DC embedded expert modules power<br />24 V DC I/O power segment<br />24 V DC main supply |
Supply voltage limits | 20.4…28.8 V | Line Rated Current | 0.04 A embedded expert modules power<br />10 A I/O power segment<br />0.26 A main supply |
Peak current | 100 kA <= 70 s)main supply<br />25 kA <= 500 s)I/O power segment<br />50 kA <= 150 s)embedded expert modules power<br />1.2 A > 70 s)main supply | Power Consumption in W | 13.03 W |
Execution time per instruction | 22 ns Boolean | Memory description | Flash 128 MB<br />Internal RAM 64 MB |
Realtime clock | Without any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C)<br />With user calibration clock, clock drift <= 6 s/month | Data backed up | Variables of type retain and retain persistent CR2477M Renata, 1.5 years |
Integrated connection type | 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps<br />1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX<br />1 isolated serial link mini B USB 480 Mbit/s<br />1 isolated serial link USB type A 480 Mbit/s<br />1 CANopen male SUB-D 9 CANopen master | Transmission rate | 125 kbit/s 1640.4 ft (500 m) CANopen<br />250 kbit/s 820.2 ft (250 m) CANopen<br />50 kbit/s 3280.8 ft (1000 m) CANopen<br />500 kbit/s 328.08 ft (100 m) CANopen<br />10 kbit/s 16404.2 ft (5000 m) CANopen<br />1000 kbit/s 13.1 ft (4 m) CANopen<br />20 kbit/s 8202.10 ft (2500 m) CANopen<br />800 kbit/s 82.02 ft (25 m) CANopen |
Counting input number | 8 200 kHz | Local signalling | 1 LED per channel I/O state<br />1 LED CAN0 STS<br />1 LED MBS COM<br />1 LED green/red APP0<br />1 LED green/red APP1<br />1 LED green/red Eth NS (Ethernet network status)<br />1 LED green/red Eth ST (Ethernet status)<br />1 LED green/red RUN/MS (module status)<br />1 LED green/red USB host<br />1 LED green/yellow Eth LA (Ethernet activity)<br />1 LED red BATT (battery status) |
marking | CE | Mounting Support | Symmetrical DIN rail |
Width | 6.9 in (175 mm) | Height | 3.9 in (99 mm) |
Depth | 3.3 in (85 mm) | Net Weight | 1.21 lb(US) (0.55 kg) |
Standards | IEC 61131-2<br />CSA C22.2 No 142<br />UL 508<br />CSA C22.2 No 213 | Product Certifications | cULus<br />CSA<br />GOST-R<br />C-tick |
Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative humidity | 5…95 % without condensation | IP degree of protection | IP20IEC 61131-2 |
Pollution degree | 2 IEC 60664 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail |
Shock resistance | 15 gn 11 ms | Resistance to electrostatic discharge | 4 kV on contact EN/IEC 61000-4-2<br />8 kV in air EN/IEC 61000-4-2 |
Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz EN/IEC 61000-4-3 | Resistance to fast transients | 1 kV EN/IEC 61000-4-4 I/O)<br />1 kV EN/IEC 61000-4-4 shielded cable)<br />2 kV EN/IEC 61000-4-4 power lines) |
Surge withstand | 0.5 kV differential mode EN/IEC 61000-4-5<br />1 kV common mode EN/IEC 61000-4-5 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
