Product Model

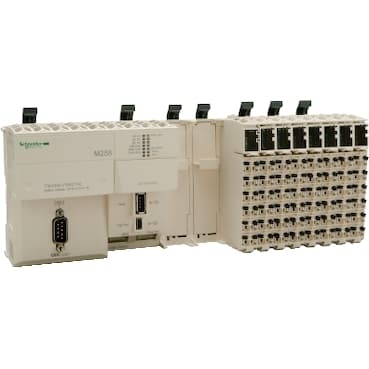

TM258LF66DT4L
Selling Points
- 1High-Performance CPU: 22ns instruction cycle for fast processing.
- 2Advanced Communication: Ethernet, CANopen master, RS232/RS485, USB ports for seamless connectivity.
- 3Robust I/O Capabilities: 66 logic I/O, 4 analog inputs, 28 discrete outputs, and 10 fast inputs.
- 4Data Logging and WebServer: Built-in features for data logging and web server functionality.
- 5Compact and Expandable Design: Suitable for general machine control, conveying, and packaging applications with expandable options via Modicon TM5 expansion modules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M258 | Product or Component Type | Logic controller |
Product Specific Application | - | Discrete I/O number | 66 |
Analogue input number | 4 | Discrete output number | 24 output<br />4 fast output |
Discrete input number | 10 fast input<br />4 regular input<br />24 input | Discrete input logic | Sink fast input<br />Sink regular input<br />Source input |
Discrete input voltage | 24 V | Discrete input voltage type | DC |
Analogue input type | Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V | Analogue input resolution | 12 bits |
Voltage state 1 guaranteed | >= 15 V fast input<br />>= 15 V fast output<br />>= 15 V regular input | Voltage state 0 guaranteed | <= 5 V fast input<br /><= 5 V fast output<br /><= 5 V regular input |
Discrete input current | 4 mA fast input<br />4 mA regular input | Input impedance | 6 kOhm fast input<br />6 kOhm regular input |
Configurable filtering time | 0 ms fast input/regular input and fast output<br />1.5 ms fast input/regular input and fast output<br />12 ms fast input/regular input and fast output<br />4 ms fast input/regular input and fast output | Anti bounce filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
Maximum cable distance between devices | <98.4 ft (30 m) fast input<br /> <98.4 ft (30 m) fast output<br /> <98.4 ft (30 m) regular input | Isolation between channels and internal logic | 500 Vrms AC |
Isolation between channels | None | Discrete output logic | Source |
Discrete output voltage | 24 V DC | Output voltage limits | 19.2...28.8 V |
Discrete output current | 4 mA fast output | [Us] rated supply voltage | 24 V DC embedded expert modules power<br />24 V DC I/O power segment<br />24 V DC main supply |
Supply voltage limits | 20.4…28.8 V | Line Rated Current | 0.04 A embedded expert modules power<br />10 A I/O power segment<br />0.31 A main supply |
Peak current | 100 kA <= 70 s)main supply<br />25 kA <= 500 s)I/O power segment<br />50 kA <= 150 s)embedded expert modules power<br />1.2 kA > 70 s)main supply | Power Consumption in W | 18.11 W |
Memory description | Flash 128 MB<br />Internal RAM 64 MB | Realtime clock | Without any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C)<br />With user calibration clock, clock drift <= 6 s/month |
Data backed up | Variables of type retain and retain persistent CR2477M Renata, 1.5 years | Integrated connection type | 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps<br />1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX<br />1 isolated serial link mini B USB 480 Mbit/s<br />1 isolated serial link USB type A 480 Mbit/s<br />2 free slots PCI<br />1 CANopen male SUB-D 9 CANopen master |
Transmission rate | 125 kbit/s 1640.4 ft (500 m) CANopen<br />250 kbit/s 820.2 ft (250 m) CANopen<br />50 kbit/s 3280.8 ft (1000 m) CANopen<br />500 kbit/s 328.08 ft (100 m) CANopen<br />10 kbit/s 16404.2 ft (5000 m) CANopen<br />1000 kbit/s 13.1 ft (4 m) CANopen<br />20 kbit/s 8202.10 ft (2500 m) CANopen<br />800 kbit/s 82.02 ft (25 m) CANopen | Counting input number | 8 200 kHz |
Local signalling | 1 LED per channel I/O state<br />1 LED CAN0 STS<br />1 LED MBS COM<br />1 LED green/red APP0<br />1 LED green/red APP1<br />1 LED green/red Eth NS (Ethernet network status)<br />1 LED green/red Eth ST (Ethernet status)<br />1 LED green/red RUN/MS (module status)<br />1 LED green/red USB host<br />1 LED green/yellow Eth LA (Ethernet activity)<br />1 LED red BATT (battery status) | marking | CE |
Mounting Support | Symmetrical DIN rail | Width | 10.3 in (262.5 mm) |
Height | 3.9 in (99 mm) | Depth | 3.3 in (85 mm) |
Net Weight | 1.8 lb(US) (0.8 kg) | Standards | UL 508<br />CSA C22.2 No 142<br />CSA C22.2 No 213<br />IEC 61131-2 |
Product Certifications | CSA<br />cULus<br />GOST-R<br />C-tick | Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % without condensation |
IP degree of protection | IP20IEC 61131-2 | Pollution degree | 2 IEC 60664 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 |
Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
