Product Model

TM2AMI2HT

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34193

In Stock
Last updated: 2025/4/23
View Specifications

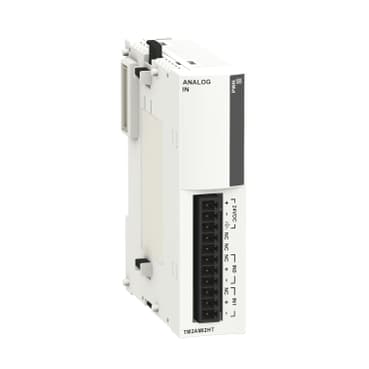

schneider TM2AMI2HT

Selling Points

  • 1The TM2AMI2HT analog input module provides precise data acquisition with a 12-bit resolution, ensuring high accuracy in your industrial applications.
  • 2Compatible with Modicon M238 logic controllers and other systems like Advantys OTB and Twido, making it versatile for various industrial setups.
  • 3Built with a robust design, featuring shielded cables and photocouplers for insulation between channels and internal logic, enhancing durability.
  • 4Equipped with a removable screw terminal block, making installation and maintenance straightforward.
  • 5Consumes 40 mA at 24 V DC external supply voltage, ensuring efficient performance in your industrial control systems.
Product Details
TM2AMI2HT
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M238 logic controller
Product or Component Type
I/O expansion module
Analogue input number
2
Input level
High level
Analogue input type
current 4...20 mA non differential<br /> voltage 0...10 V non differential
Cross talk
<= 2 LSB
Range Compatibility
Twido<br />Advantys OTB
Analogue input resolution
12 bits
LSB value
2.5 mV voltage voltage<br />4.8 µA current current
Permissible continuous overload
40 mA current<br />13 V voltage
Input impedance
>= 1 MOhm voltage<br />10 Ohm current
Sampling duration
10 ms
Acquisition period
10 ms per channel + 1 controller cycle time
Measurement error
+/- 0.2 % of full scale 25 °C
Temperature coefficient
+/-0.006 %FS/°C
Repeat accuracy
+/-0.5 %FS
Non-linearity
+/- 0.2 %FS
Total error
+/-1 %FS
Type of Cable
Shielded cable
Insulation between channel and internal logic
Photocoupler
Supply
External supply
[Us] rated supply voltage
24 V DC
Supply voltage limits
20.4…28.8 V
Electrical connection
1 removable screw terminal block
Current consumption
50 mA 5 V DC internal<br />40 mA 24 V DC external
Net Weight
0.187 lb(US) (0.085 kg)
Dielectric strength
500 V between the I/O and the external supply circuit<br />500 V between the I/O and internal logic
Width
0.9 in (23.5 mm)
Depth
2.8 in (70 mm)
Height
3.5 in (90 mm)

Specifications may be subject to change without notice
