Product Model

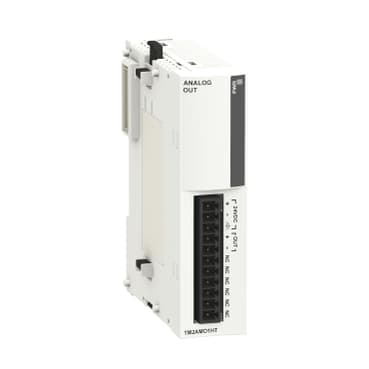

TM2AMO1HT
Selling Points
- 1Precise Control: Designed for precise control tasks in industrial settings.
- 212-Bit Resolution: Offers high-resolution analog output with 12-bit resolution.
- 3Versatile Outputs: Supports both voltage (0-10V) and current (4-20mA) outputs.
- 4Easy Installation: Equipped with a single removable screw terminal block for easy electrical connection.
- 5Reliable Performance: Stabilization time of 10 ms and conversion time of 10 ms + 1 controller cycle time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Analog output module |
Analogue output number | 1 | Analogue output type | Current 4...20 mA<br />Voltage 0...10 V |
Range Compatibility | Advantys OTB<br />Twido | Analogue output resolution | 12 bits |
LSB value | 2.5 mV voltage voltage<br />4.8 µA current current | Load type | Resistive |
Load impedance ohmic | >= 2000 Ohm voltage<br /><= 300 Ohm current | Stabilisation time | 10 ms |
Conversion time | 10 ms + 1 controller cycle time | Measurement error | +/- 0.2 % of full scale 25 °C |
Temperature coefficient | +/-0.015 %FS/°C | Repeat accuracy | +/-0.5 %FS |
Non-linearity | +/- 0.2 %FS | Output ripple | <= 1 LSB |
Total error | +/-1 %FS | Type of Cable | Twisted shielded cable |
Insulation between channel and internal logic | Photocoupler | Supply | External supply |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…30 V |
Electrical connection | 1 removable screw terminal block | Current consumption | 50 mA 5 V DC internal<br />40 mA 24 V DC external |
Net Weight | 0.187 lb(US) (0.085 kg) | Dielectric strength | 500 V between the I/O and the external supply circuit<br />500 V between the I/O and internal logic |
Width | 0.9 in (23.5 mm) | Depth | 2.8 in (70 mm) |
Height | 3.5 in (90 mm) |
Specifications may be subject to change without notice
