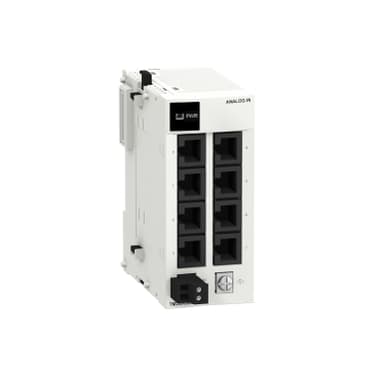

Schneider Electric TM2ARI8LRJ Analog Input Module

Selling Points

1High Resolution: 12-bit analogue input resolution for precise temperature measurements.
2Multi-Temperature Range: Compatible with temperature probes for 200-600°C Pt100 and 50-200°C Pt1000.
3Reliable Connectivity: Equipped with RJ11 connectors for secure and reliable sensor connections.
4Efficient Power Supply: Operates on 24 V DC with a current consumption of <=140 mA.
5Durable Design: Built with a durable design, including a removable screw terminal block and photocoupler insulation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M238 logic controller	Product or Component Type	Analog input module
Analogue input number	8	Analogue input type	Pt 100 temperature probe - 200...600 °C non differential<br />Pt 1000 temperature probe - 50...200 °C non differential
Range Compatibility	Advantys OTB<br />Twido	Analogue input resolution	12 bits
LSB value	0.006 °C Pt 1000<br />0.2 °C Pt 100	Input impedance	>= 10 kOhm
Sampling duration	160 ms	Acquisition period	320 ms per group of channel + 1 controller cycle time
Measurement error	+/- 0.3 % of full scale Pt 1000 25 °C<br />+/- 0.5 % of full scale Pt 100 25 °C	Temperature coefficient	+/-0.01 %FS/°C
Repeat accuracy	+/- 0.1 °C	Total error	1 °C Pt 1000<br />4 °C Pt 100
Insulation between channel and internal logic	Photocoupler	Supply	External supply
[Us] rated supply voltage	24 V DC	Supply voltage limits	19.2…30 V
Electrical connection	1 removable screw terminal block power supply<br />8 connectors RJ11 sensors	Current consumption	<= 140 mA 24 V DC external<br />90 mA 5 V DC internal
Net Weight	0.42 lb(US) (0.19 kg)	Dielectric strength	500 V between the I/O and the external supply circuit<br />2500 V between the I/O and internal logic
Width	1.5 in (39.1 mm)	Depth	2.8 in (70 mm)
Height	3.5 in (90 mm)

Specifications may be subject to change without notice
