Product Model

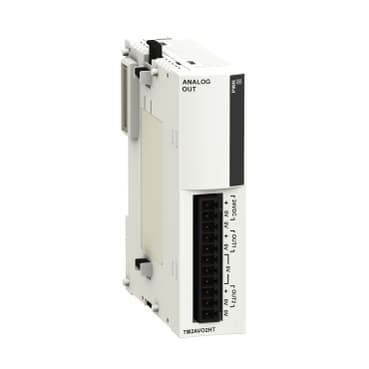

TM2AVO2HT
Selling Points
- 1High-Performance Analog Output: The TM2AVO2HT module offers 2 voltage outputs with high accuracy and reliability.
- 2Easy Installation: Features a removable screw terminal block for easy connection and mounting.
- 3Compact Design: Measuring 2.76 inches deep and 3.54 inches high, it fits seamlessly into DIN rail mounting systems.
- 4Sustainable Solution: Compliant with RoHS and REACh regulations, ensuring environmental sustainability.
- 5Wide Compatibility: Compatible with Modicon M238 logic controllers and other Schneider Electric systems like Advantys OTB and Twido.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Analog output module |
Analogue output number | 2 | Analogue output type | Voltage +/- 10 V |
Range Compatibility | Advantys OTB<br />Twido | Analogue output resolution | 11 bits + sign |
LSB value | +/- 9.8 mV voltage | Load type | Resistive |
Load impedance ohmic | <= 3000 Ohm voltage | Stabilisation time | 2 ms |
Conversion time | 2 ms + 1 controller cycle time | Measurement error | +/- 0.5 % of full scale 25 °C |
Temperature coefficient | +/-0.01 %FS/°C | Repeat accuracy | +/-0.1 %FS |
Non-linearity | +/- 0.2 %FS | Output ripple | <= 1 LSB |
Total error | +/-1 %FS | Type of Cable | Twisted shielded cable |
Insulation between channel and internal logic | Photocoupler | Supply | External supply |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…30 V |
Electrical connection | 1 removable screw terminal block | Current consumption | 60 mA 5 V DC internal<br />60 mA 24 V DC external |
Net Weight | 0.187 lb(US) (0.085 kg) | Dielectric strength | 2500 V between the I/O and internal logic |
Width | 0.9 in (23.5 mm) | Depth | 2.8 in (70 mm) |
Height | 3.5 in (90 mm) |
Specifications may be subject to change without notice
