Product Model

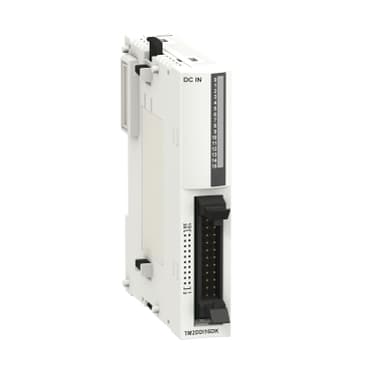

TM2DDI16DK
Selling Points
- 1High-Quality Construction: Built with robust materials for reliable performance in industrial environments.
- 216 Digital Inputs: Supports up to 16 digital inputs, making it versatile for various automation needs.
- 324DC Voltage Compatibility: Operates on 24DC voltage, ensuring compatibility with most industrial systems.
- 4Easy Integration: Designed for seamless integration with Modicon M238 logic controllers and other Schneider Electric systems.
- 5Official Guarantee: Comes with an official guarantee from Schneider Electric, ensuring peace of mind for your investment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete input module |
Discrete input number | 16 | Discrete input voltage | 24 V |
Discrete input voltage type | DC | Range Compatibility | Advantys OTB<br />Twido |
input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
Discrete input current | 5 mA | input impedance | 4.4 kOhm |
Number of common point | 1 | Response time | 4 ms at state 0<br />4 ms at state 1 |
Isolation between channels | None | Isolation between channels and internal logic | 500 V for 1 minute |
Current consumption | 35 mA 5 V DC at state 1 for all input | Local signalling | 2 display blocks |
Electrical connection | 1 connector HE10 | Mounting Support | 35 mm symmetrical DIN rail |
Net Weight | 0.2 lb(US) (0.1 kg) | Depth | 3.2 in (81.3 mm) |
Height | 3.5 in (90 mm) | Width | 0.8 in (21.4 mm) |
Specifications may be subject to change without notice
