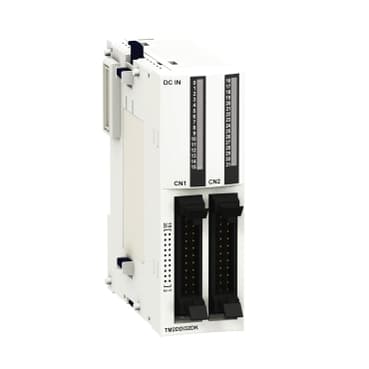

Product Model
TM2DDI32DK
Selling Points
- 1High-Performance Discrete Input Module: The TM2DDI32DK offers 32 digital inputs with a response time of 4 ms, ensuring fast and reliable data processing.
- 2Wide Compatibility: Compatible with Modicon M238 logic controllers and Twido/Advantys OTB series, making it versatile for various industrial applications.
- 3Efficient Design: Operates at 24 V DC with an input current of 5 mA, reducing power consumption and enhancing efficiency.
- 4Durable Construction: Built with a 35 mm symmetrical DIN rail mounting support, ensuring stable and secure installation.
- 5Comprehensive Warranty: Backed by a 2-year warranty from Schneider Electric, providing peace of mind for your industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete input module |
Discrete input number | 32 | Discrete input voltage | 24 V |
Discrete input voltage type | DC | Range Compatibility | Twido<br />Advantys OTB |
input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
Discrete input current | 5 mA | input impedance | 4.4 kOhm |
Number of common point | 2 | Response time | 4 ms at state 0<br />4 ms at state 1 |
Isolation between channels | None | Isolation between channels and internal logic | 500 V for 1 minute |
Current consumption | 65 mA 5 V DC at state 1 for all input | Local signalling | 2 display blocks |
Electrical connection | 1 connector HE10 | Mounting Support | 35 mm symmetrical DIN rail |
Net Weight | 0.179 lb(US) (0.081 kg) | Depth | 3.2 in (81.3 mm) |
Height | 3.5 in (90 mm) | Width | 1.2 in (29.7 mm) |
Specifications may be subject to change without notice
