Product Model

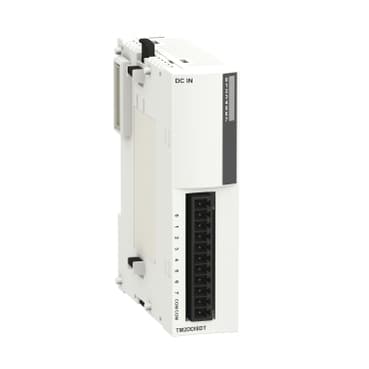

TM2DDI8DT
Selling Points
- 18-Channel Digital Input Module: Expand your Modicon M238 logic controller with 8 discrete inputs.
- 224VDC Operation: Compatible with 24VDC, ensuring reliable operation in industrial environments.
- 3Removable Screw Terminal Block: Easy and secure connections with a removable screw terminal block.
- 4High-Quality Construction: Built to last with durable materials, ensuring long-term performance.
- 5Compliant with Environmental Regulations: Meets EU RoHS and California Proposition 65 standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
Discrete input number | 8 | Discrete input voltage | 24 V |
Discrete input voltage type | DC | Range Compatibility | Twido<br />Advantys OTB |
input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
Discrete input current | 7 mA | input impedance | 3.4 kOhm |
Number of common point | 1 | Response time | 4 ms at state 0<br />4 ms at state 1 |
Isolation between channels | None | Isolation between channels and internal logic | 500 V for 1 minute |
Current consumption | 25 mA 5 V DC at state 1 for all input | Local signalling | 1 display block |
Electrical connection | 1 removable screw terminal block | Mounting Support | 35 mm symmetrical DIN rail |
Net Weight | 0.2 lb(US) (0.1 kg) | Depth | 3.3 in (84.6 mm) |
Height | 3.5 in (90 mm) | Width | 0.9 in (23.5 mm) |
Specifications may be subject to change without notice
