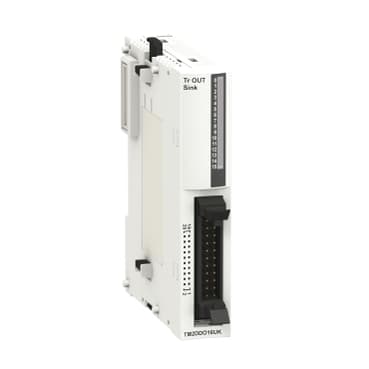

Schneider Electric TM2DDO16UK Discrete Output Module for Modicon M238 Logic Controller

Selling Points

1The TM2DDO16UK offers 16 discrete outputs, each capable of handling 24V transistor logic.
2Ensures reliable operation with a response time of 300 µs from state 0 to state 1 and 300 µs from state 1 to state 0.
3Compact design with a weight of 0.07 kg, making it easy to integrate into DIN rail systems.
4Compatible with Twido Advantys OTB and other Modicon M238 logic controllers, enhancing system flexibility.
5Part of Schneider Electric's commitment to sustainability, with a focus on recyclability and reduced environmental impact.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M238 logic controller	Product or Component Type	Discrete output module
Discrete output number	16	Discrete output type	Transistor
Discrete output voltage	24 V	Discrete output logic	Sink
Discrete output current	0.1 A	Range Compatibility	Twido<br />Advantys OTB
Output voltage limits	20.4...28.8 V	Current per channel	0.12 A
Maximum current per output common	1 A	Number of common point	1
Response time	300 µs from state 0 to state 1<br />300 µs from state 1 to state 0	[Ures] residual voltage	1 V at state 1
Maximum tungsten load	8 W	Short-circuit protection	Without
Overload protection	Without	Isolation between channels	None
Isolation between channels and internal logic	500 V for 1 minute	Current consumption	10 mA 5 V DC at state 1 for all output<br />40 mA 24 V DC at state 1 for all output
Local signalling	2 display blocks	Electrical connection	1 connector HE10
Mounting Support	35 mm symmetrical DIN rail	Net Weight	0.15 lb(US) (0.07 kg)
Depth	3.2 in (81.3 mm)	Height	3.5 in (90 mm)
Width	0.8 in (21.4 mm)
