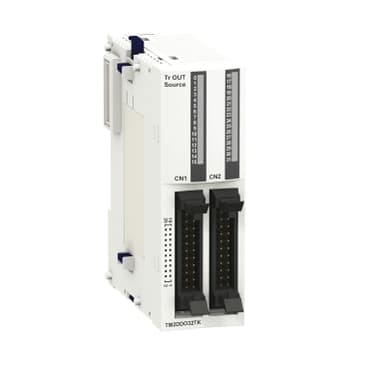

Product Model
TM2DDO32TK
Selling Points
- 1Equipped with 32 digital outputs, each capable of 24Vdc 100mA.
- 2Operates on a supply voltage of 19-30Vdc, with a nominal voltage of 24Vdc.
- 3Features a response time of 450 μs from state 0 to state 1 and 1450 μs from state 1 to state 0.
- 4Engineered for symmetrical rail mounting, ensuring easy integration into industrial automation systems.
- 5Includes short-circuit protection and automatic reactivation, ensuring reliable operation in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete output module |
Discrete output number | 32 | Discrete output type | Transistor |
Discrete output voltage | 24 V | Discrete output logic | Source |
Discrete output current | 0.4 A | Range Compatibility | Advantys OTB<br />Twido |
Output voltage limits | 20.4...28.8 V | Current per channel | 0.48 A |
Maximum current per output common | 2 A | Number of common point | 2 |
Response time | 450 µs from state 0 to state 1<br />450 µs from state 1 to state 0 | [Ures] residual voltage | 0.4 V at state 1 |
Maximum leakage current | 0.1 mA | Maximum inductive load | 10 mH |
Maximum tungsten load | 9.6 W | Short-circuit protection | With automatic reactivaton |
Overload protection | With automatic reactivaton | Isolation between channels | None |
Isolation between channels and internal logic | 500 V for 1 minute | Current consumption | 25 mA 5 V DC at state 1 for all output<br />40 mA 24 V DC at state 1 for all output |
Local signalling | 2 display blocks | Electrical connection | 1 connector HE10 |
Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.231 lb(US) (0.105 kg) |
Depth | 3.2 in (81.3 mm) | Height | 3.5 in (90 mm) |
Width | 1.3 in (33.5 mm) |
Specifications may be subject to change without notice
