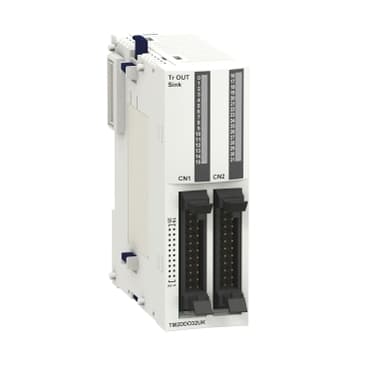

TM2DDO32UK Discrete Output Module by Schneider Electric

Selling Points

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M238 logic controller	Product or Component Type	Discrete output module
Discrete output number	32	Discrete output type	Transistor
Discrete output voltage	24 V	Discrete output logic	Sink
Discrete output current	0.1 A	Range Compatibility	Advantys OTB<br />Twido
Output voltage limits	20.4...28.8 V	Current per channel	0.12 A
Maximum current per output common	1 A	Number of common point	2
Response time	300 µs from state 0 to state 1<br />300 µs from state 1 to state 0	[Ures] residual voltage	1 V at state 1
Maximum tungsten load	8 W	Short-circuit protection	Without
Overload protection	Without	Isolation between channels	None
Isolation between channels and internal logic	500 V for 1 minute	Current consumption	20 mA 5 V DC at state 1 for all output<br />70 mA 24 V DC at state 1 for all output
Local signalling	2 display blocks	Electrical connection	1 connector HE10
Mounting Support	35 mm symmetrical DIN rail	Net Weight	0.231 lb(US) (0.105 kg)
Depth	3.2 in (81.3 mm)	Height	3.5 in (90 mm)
Width	1.3 in (33.5 mm)
