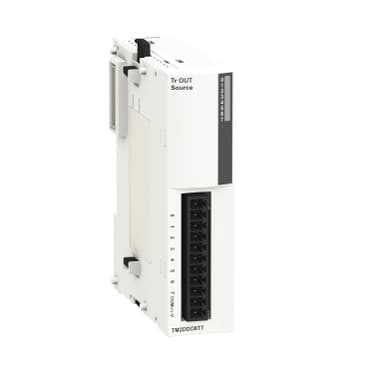

Schneider Electric TM2DDO8TT Discrete Output Module

Selling Points

1High Performance: The TM2DDO8TT offers fast response times of 450 µs from state 0 to state 1 and 450 µs from state 1 to state 0.
2Reliable Connectivity: Equipped with a removable screw terminal block for secure electrical connections.
3Versatile Compatibility: Compatible with Modicon M238 logic controllers and Twido series, ensuring broad application range.
4Efficient Power Handling: Handles inductive loads up to 10 mH and tungsten loads up to 12 W.
5Durable Design: Built with a 35 mm symmetrical DIN rail mounting support for easy installation and robust operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Modicon M238 logic controller	Product or Component Type	Discrete output module
Discrete output number	8	Discrete output type	Transistor
Discrete output voltage	24 V	Discrete output logic	Source
Discrete output current	0.5 A	Range Compatibility	Advantys OTB<br />Twido
Output voltage limits	20.4...28.8 V	Current per channel	0.6 A
Maximum current per output common	4 A	Number of common point	1
Response time	450 µs from state 0 to state 1<br />450 µs from state 1 to state 0	[Ures] residual voltage	0.4 V at state 1
Maximum leakage current	0.1 mA	Maximum inductive load	10 mH
Maximum tungsten load	12 W	Short-circuit protection	With automatic reactivaton
Overload protection	With automatic reactivaton	Isolation between channels	None
Isolation between channels and internal logic	500 V for 1 minute	Current consumption	10 mA 5 V DC at state 1 for all output<br />20 mA 24 V DC at state 1 for all output
Local signalling	1 display block	Electrical connection	1 removable screw terminal block
Mounting Support	35 mm symmetrical DIN rail	Net Weight	0.187 lb(US) (0.085 kg)
Depth	3.3 in (84.6 mm)	Height	3.5 in (90 mm)
Width	1.07 in (27.3 mm)

Specifications may be subject to change without notice
