Product Model

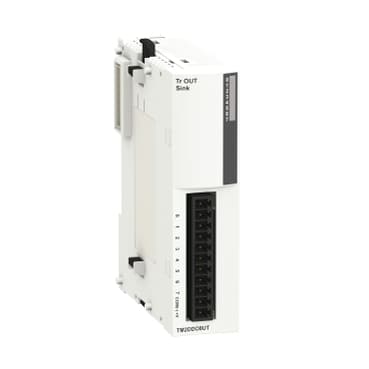

TM2DDO8UT
Selling Points
- 1Control up to 8 discrete outputs with high precision.
- 2Operate within a reliable 24V voltage range.
- 3Ensure efficient current handling with 0.3A per channel.
- 4Easily mount on 35mm DIN rail for compact installations.
- 5Enjoy peace of mind with a comprehensive 2-year warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete output module |
Discrete output number | 8 | Discrete output type | Transistor |
Discrete output voltage | 24 V | Discrete output logic | Sink |
Discrete output current | 0.3 A | Range Compatibility | Advantys OTB<br />Twido |
Output voltage limits | 20.4...28.8 V | Current per channel | 0.36 A |
Maximum current per output common | 3 A | Number of common point | 1 |
Response time | 300 µs at state 0<br />300 µs at state 1 | [Ures] residual voltage | 1 V at state 1 |
Maximum tungsten load | 8 W | Short-circuit protection | Without |
Overload protection | Without | Isolation between channels | None |
Isolation between channels and internal logic | 500 V for 1 minute | Current consumption | 10 mA 5 V DC at state 1 for all output<br />20 mA 24 V DC at state 1 for all output |
Local signalling | 1 display block | Electrical connection | 1 removable screw terminal block |
Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.187 lb(US) (0.085 kg) |
Depth | 3.3 in (84.6 mm) | Height | 3.5 in (90 mm) |
Width | 1.07 in (27.3 mm) |
Specifications may be subject to change without notice
