Product Model

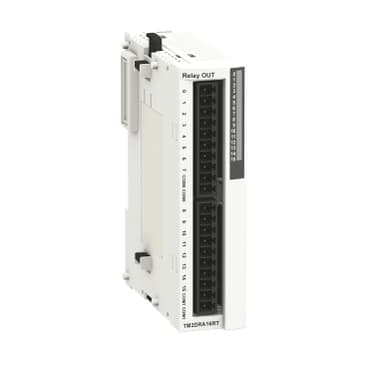

TM2DRA16RT
Selling Points
- 116 Discrete Relay Outputs: Control and monitor industrial processes efficiently with 16 discrete relay outputs.
- 2Robust Performance: Ensure consistent operation in demanding environments with a maximum output current of 2 A per channel.
- 3High Isolation Capabilities: Maintain stable signals with 2300 V isolation between channels and internal logic.
- 4Compact Design: Measure just 3.33 inches in depth, 3.54 inches in height, and 1.07 inches in width for space-efficient installation.
- 5Sustainable Solution: Compliant with EU RoHS Directive and China RoHS regulations, making it a mercury-free and environmentally conscious choice.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
Discrete output number | 16 | Discrete output type | Relay |
Range Compatibility | Twido<br />Advantys OTB | Discrete output function | 1 NO |
Current per channel | 2 A | Maximum current per output common | 8 A |
Number of common point | 2 | Contact resistance | 45 mOhm |
Response time | <= 10 ms from state 0 to state 1 input<br /><= 5 ms from state 1 to state 0 input | Minimum switching current | 0.1 mA 0.1 V DC |
Isolation between channels | 1500 V for 1 minute | Isolation between channels and internal logic | 2300 V for 1 minute |
Isolation between output channels group | 1500 V for 1 minute | Mechanical durability | 20000000 cycles |
Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive<br />100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive<br />100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms)<br />100000 cycles 2 A 240 V AC resistive<br />100000 cycles 2 A 30 V DC resistive | Current consumption | 30 mA 5 V DC at state 1 for all output<br />40 mA 24 V DC at state 1 for all output |
Local signalling | 1 display block | Electrical connection | 1 removable screw terminal block |
Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.320 lb(US) (0.145 kg) |
Depth | 3.3 in (84.6 mm) | Height | 3.5 in (90 mm) |
Width | 1.07 in (27.3 mm) |
Specifications may be subject to change without notice
