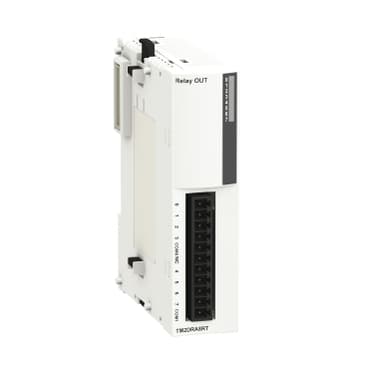

Product Model
TM2DRA8RT
Selling Points
- 18 N/O relay outputs with 230V AC and 30V DC compatibility.
- 2Equipped with one removable screw terminal block for easy wiring.
- 3Mountable on a symmetrical DIN rail 35 mm for compact installation.
- 4High isolation between output channels and internal logic (2300V).
- 5Long mechanical life with 20 million operations minimum (no load).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
Discrete output number | 8 | Discrete output type | Relay |
Range Compatibility | Twido<br />Advantys OTB | Discrete output function | 1 NO |
Current per channel | 2 A | Maximum current per output common | 7 A |
Number of common point | 2 | Contact resistance | 45 mOhm |
Response time | <= 10 ms from state 0 to state 1 input<br /><= 5 ms from state 1 to state 0 input | Minimum switching current | 0.1 mA 0.1 V DC |
Isolation between channels | 1500 V for 1 minute | Isolation between channels and internal logic | 2300 V for 1 minute |
Isolation between output channels group | 1500 V for 1 minute | Mechanical durability | 20000000 cycles |
Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive<br />100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive<br />100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms)<br />100000 cycles 2 A 240 V AC resistive<br />100000 cycles 2 A 30 V DC resistive | Current consumption | 30 mA 5 V DC at state 1 for all output<br />40 mA 24 V DC at state 1 for all output |
Local signalling | 1 display block | Electrical connection | 1 removable screw terminal block |
Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.24 lb(US) (0.11 kg) |
Depth | 3.3 in (84.6 mm) | Height | 3.5 in (90 mm) |
Width | 1.07 in (27.3 mm) |
Specifications may be subject to change without notice
