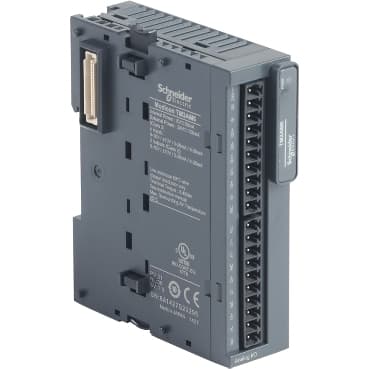

schneider TM3AM6

Selling Points

  • 1High reliability and durability for critical applications.
  • 2Advanced monitoring and control capabilities for real-time performance.
  • 3Compact design for easy integration into various systems.
  • 4Enhanced safety features with built-in protection mechanisms.
  • 5Compatible with a wide range of power systems and configurations.
Product Details
TM3AM6
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon TM3
Product or Component Type
Input/output analog module
Range Compatibility
Modicon M221<br />Modicon M241<br />Modicon M251<br />Modicon M262
Analogue input number
4
Analogue input type
current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V<br /> voltage - 10...10 V
Analogue output number
2
Analogue output type
Current 4...20 mA<br />Current 0...20 mA<br />Voltage 0...10 V<br />Voltage - 10...10 V
Analogue input resolution
12 bits<br />11 bits + sign
Permissible continuous overload
13 V voltage<br />40 mA current
Input impedance
<= 50 Ohm current<br />>= 1 MOhm voltage
Analogue output resolution
12 bits<br />11 bits + sign
LSB value
2.44 mV 0...10 V voltage<br />4.88 mV - 10...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current
Load type
Resistive
Load impedance ohmic
1 kOhm voltage<br />300 Ohm current
Stabilisation time
1 ms
Conversion time
1 ms + 1 ms per channel + 1 controller cycle time
Sampling duration
1 ms<br />10 ms
Absolute accuracy error
+/- 1 % of full scale<br />+/- 0.2 % of full scale at 77 °F (25 °C)
Temperature Drift
+/- 0.01 %FS/°C
Repeat accuracy
+/-0.5 %FS input<br />+/-0.5 %FS output
Non-linearity
+/- 0.2 %FS
Output ripple
20 mV
Cross talk
<= 1 LSB
[Us] rated supply voltage
24 V DC
Supply voltage limits
20.4…28.8 V
Type of cable
Twisted shielded pairs cable <98.4 ft (30 m) input/output
Current consumption
45 mA 5 V DC via bus connector no load<br />55 mA 5 V DC via bus connector full load<br />55 mA 24 V DC via external supply no load<br />100 mA 24 V DC via external supply full load
Local signalling
for PWR 1 LED (green)
Electrical connection
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs<br />10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs, outputs and supply
Insulation
Between input and supply 1500 V AC<br />Between input and internal logic 500 V AC<br />Between output and supply 1500 V AC<br />Between output and internal logic 500 V AC
marking
CE
Surge withstand
1 kV power supply common mode IEC 61000-4-5<br />0.5 kV power supply differential mode IEC 61000-4-5<br />1 kV I/O common mode IEC 61000-4-5<br />0.5 kV I/O differential mode IEC 61000-4-5
Mounting support
Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit
Height
3.5 in (90 mm)
Depth
2.8 in (70 mm)
Width
0.9 in (23.6 mm)
Net Weight
0.24 lb(US) (0.11 kg)
Standards
IEC 61131-2
Product Certifications
CE<br />UKCA<br />RCM<br />EAC<br />cULus<br />cULus HazLoc
Resistance to electrostatic discharge
8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Resistance to magnetic fields
98.4 A/m (30 A/m) IEC 61000-4-8
Resistance to fast transients
1 kV IEC 61000-4-4 I/O)
Resistance to conducted disturbances
10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission
Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011
Immunity to microbreaks
10 ms
Ambient Air Temperature for Operation
14…131 °F (-10…55 °C) horizontal installation<br />14…95 °F (-10…35 °C) vertical installation
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative humidity
10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage)
IP Degree of Protection
IP20
Pollution degree
2
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail
Shock resistance
15 gn 11 ms

Specifications may be subject to change without notice
