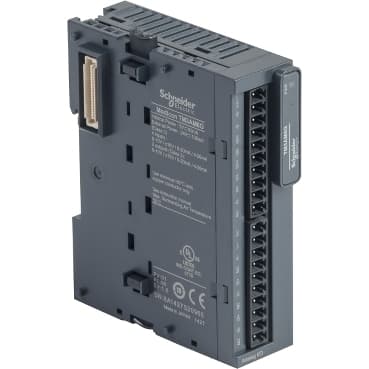

schneider TM3AM6G

Selling Points

  • 1High-performance power supply designed for critical applications.
  • 2Reliable and efficient operation with advanced cooling systems.
  • 3Compact and lightweight design for easy integration.
  • 4Wide range of output voltages and currents to meet diverse needs.
  • 5Enhanced safety features with built-in overcurrent protection.
Product Details
TM3AM6G
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon TM3
Product or Component Type
Input/output analog module
Range Compatibility
Modicon M221<br />Modicon M241<br />Modicon M251<br />Modicon M262
Analogue input number
4
Analogue input type
current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V<br /> voltage - 10...10 V
Analogue output number
2
Analogue output type
Current 4...20 mA<br />Current 0...20 mA<br />Voltage 0...10 V<br />Voltage - 10...10 V
Analogue input resolution
12 bits<br />11 bits + sign
Permissible continuous overload
13 V voltage<br />40 mA current
Input impedance
<= 50 Ohm current<br />>= 1 MOhm voltage
Analogue output resolution
12 bits<br />11 bits + sign
LSB value
2.44 mV 0...10 V voltage<br />4.88 mV - 10...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current
Load type
Resistive
Load impedance ohmic
1 kOhm voltage<br />300 Ohm current
Stabilisation time
1 ms
Conversion time
1 ms + 1 ms per channel + 1 controller cycle time
Sampling duration
1 ms<br />10 ms
Absolute accuracy error
+/- 1 % of full scale<br />+/- 0.2 % of full scale at 77 °F (25 °C)
Temperature Drift
+/- 0.01 %FS/°C
Repeat accuracy
+/-0.5 %FS input<br />+/-0.5 %FS output
Non-linearity
+/- 0.2 %FS
Output ripple
20 mV
Cross talk
<= 1 LSB
[Us] rated supply voltage
24 V DC
Supply voltage limits
20.4…28.8 V
Type of cable
Twisted shielded pairs cable <98.4 ft (30 m) input/output
Current consumption
45 mA 5 V DC via bus connector no load<br />55 mA 5 V DC via bus connector full load<br />55 mA 24 V DC via external supply no load<br />100 mA 24 V DC via external supply full load
Local signalling
for PWR 1 LED (green)
Electrical connection
10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs<br />10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs, outputs and supply
Insulation
Between input and supply 1500 V AC<br />Between input and internal logic 500 V AC<br />Between output and supply 1500 V AC<br />Between output and internal logic 500 V AC
Marking
CE
Surge withstand
1 kV power supply common mode IEC 61000-4-5<br />0.5 kV power supply differential mode IEC 61000-4-5<br />1 kV I/O common mode IEC 61000-4-5<br />0.5 kV I/O differential mode IEC 61000-4-5
Mounting support
Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit
Height
3.5 in (90 mm)
Depth
2.8 in (70 mm)
Width
0.9 in (23.6 mm)
Net Weight
0.2 lb(US) (0.1 kg)
Standards
IEC 61131-2
Product Certifications
CE<br />UKCA<br />RCM<br />EAC<br />cULus<br />cULus HazLoc
Resistance to electrostatic discharge
8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Resistance to magnetic fields
98.4 A/m (30 A/m) IEC 61000-4-8
Resistance to fast transients
1 kV IEC 61000-4-4 I/O)
Resistance to conducted disturbances
10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission
Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011
Immunity to microbreaks
10 ms
Ambient Air Temperature for Operation
14…131 °F (-10…55 °C) horizontal installation<br />14…95 °F (-10…35 °C) vertical installation
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative humidity
10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage)
IP Degree of Protection
IP20
Pollution degree
2
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail
Shock resistance
15 gn 11 ms

Specifications may be subject to change without notice
