Product Model

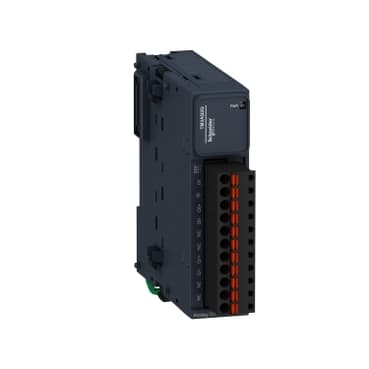

TM3AQ2G
Selling Points
- 1High-performance power supply for critical applications.
- 2Reliable operation with minimal downtime.
- 3Efficient energy conversion with low losses.
- 4Compact design for easy integration.
- 5Compliant with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM3 | Product or Component Type | Analog output module |
Range Compatibility | Modicon M221<br />Modicon M241<br />Modicon M251<br />Modicon M262 | Analogue output number | 2 |
Analogue output type | Current 4...20 mA<br />Current 0...20 mA<br />Voltage 0...10 V<br />Voltage - 10...10 V | Analogue input resolution | 12 bits<br />11 bits + sign |
Analogue output resolution | 11 bits + sign<br />12 bits | LSB value | 2.44 mV 0...10 V voltage<br />4.88 mV - 10...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current |
Load type | Resistive | Load impedance ohmic | 1 kOhm voltage<br />300 Ohm current |
Stabilisation time | 1 ms | Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C)<br />+/- 1 % of full scale | Temperature Drift | +/- 0.006 %FS/°C |
Repeat accuracy | +/- 0.4 %FS | Non-linearity | +/- 0.01 %FS |
Output ripple | 20 mV | Cross talk | <= 1 LSB |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 20.4…28.8 V |
Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) output | Current consumption | 40 mA 5 V DC via bus connector full load<br />35 mA 5 V DC via bus connector no load<br />30 mA 24 V DC via external supply no load<br />70 mA 24 V DC via external supply full load |
Local signalling | for PWR 1 LED (green) | Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs and supply |
Insulation | Between output and supply 1500 V AC<br />Between output and internal logic 500 V AC | Marking | CE |
Surge withstand | 1 kV power supply common mode IEC 61000-4-5<br />0.5 kV power supply differential mode IEC 61000-4-5<br />1 kV output common mode IEC 61000-4-5 | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
Height | 3.5 in (90 mm) | Depth | 2.8 in (70 mm) |
Width | 0.9 in (23.6 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
Standards | IEC 61131-2 | Product Certifications | CE<br />UKCA<br />RCM<br />EAC<br />cULus<br />cULus HazLoc |
Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
Resistance to magnetic fields | 98.4 A/m (30 A/m) IEC 61000-4-8 | Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) |
Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
Immunity to microbreaks | 10 ms | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation<br />14…95 °F (-10…35 °C) vertical installation |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
