Product Model

TM3BCCO

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

33953

In Stock
Last updated: 2025/4/24
View Specifications

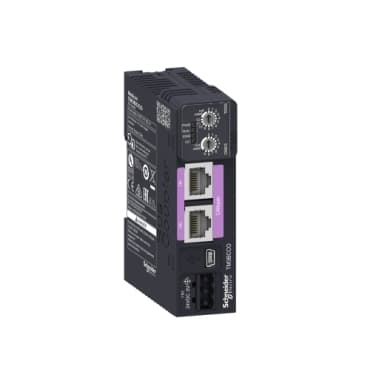

schneider TM3BCCO

Selling Points

  • 1High reliability for critical applications.
  • 2Advanced thermal management for optimal performance.
  • 3Compact design for space-saving installations.
  • 4Easy installation and maintenance with intuitive interfaces.
  • 5Compliant with international safety standards for peace of mind.
Product Details
TM3BCCO
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon TM3
Product Compatibility
Logic controller<br />Motion controller
Product or Component Type
I/O distributed module
Product Specific Application
Bus coupler module
communication port protocol
CANopen
Connector type
RJ45 2 CANopen daisy chain isolated<br />USB device port Mini-B
Transmission Rate
20 kbit/s...1 Mbit/s
Topology
Daisy chain
Communication Network Type
CANopen
Communication Service
CANopen slave device profile
Web services
Web server, USB
Current consumption
0.8 A 24 V DC internal supply maximum 7 expansion modules
Local signalling
1 LED green/red PWR (System Status)<br />1 LED green/red RUN (Run)<br />1 LED green/red ERR (Error)<br />1 LED green/red I/O status
Fixing mode
By clipping locks (rail)<br />By screws (mounting plate)
Product Certifications
CE<br />cULus<br />EAC<br />RCM<br />UKCA<br />EU-RO MR
Standards
IEC 61131-2<br />UL/CSA 61010-1<br />UL/CSA 61010-2-201
Width
1.06 in (27 mm)
Height
3.8 in (96.5 mm)
Depth
2.8 in (70 mm)
Net Weight
0.22 lb(US) (0.10 kg)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Pollution degree
2
Ambient Air Temperature for Operation
14…140 °F (-10…60 °C)
IP degree of protection
IP20 conforming to IEC/EN 61010-2-201
Relative Humidity
10…95 % non-condensing
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
3M4 35 x 15 mm symmetrical DIN rail

Specifications may be subject to change without notice
