Product Model

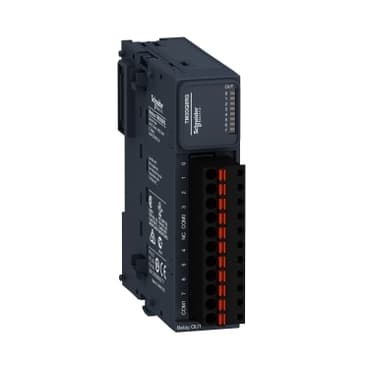

TM3DQ8RG
Selling Points
- 18 Relay Outputs: Ideal for complex control systems with multiple switching needs.
- 2High Durability: Designed for 20 million operations, ensuring long-lasting performance.
- 3Reliable Performance: Rated for 24Vdc and 240Vac, suitable for various industrial applications.
- 4Mechanical Life: Supports up to 20 million operations under resistive load and 7 A per common output.
- 5Robust Environmental Characteristics: IP20 rated, with isolation between output and internal logic at 500Vac.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM3 | Product or Component Type | Discrete output module |
Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Discrete output type | Relay normally open |
Discrete output number | 8 | Discrete output logic | Positive or negative |
Discrete output voltage | 24 V DC relay output<br />240 V AC | Discrete output current | 2000 mA relay output |
Discrete I/O number | 8 | Current consumption | 5 mA 5 V DC via bus connector at state off)<br />0 mA 24 V DC via bus connector at state off)<br />40 mA 24 V DC via bus connector at state on)<br />30 mA 5 V DC via bus connector at state on) |
Response time | 10 ms (turn-on)<br />5 ms (turn-off) | Mechanical durability | 20000000 cycles |
Minimum load | 10 mA 5 V DC relay output | Local signalling | for output status 1 LED per channel (green) |
Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs | Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) relay output |
Insulation | Between output and internal logic 2300 V AC<br />Between outputs 750 V AC<br />Between output groups 1500 V AC | marking | CE |
Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
Depth | 3.3 in (84.6 mm) | Width | 1.08 in (27.4 mm) |
Net Weight | 0.24 lb(US) (0.11 kg) | Standards | IEC 61131-2 |
Product Certifications | CE<br />cULus<br />UKCA<br />RCM<br />EAC<br />cULus HazLoc | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 |
Resistance to fast transients | 2 kV relay outputIEC 61000-4-4 | Surge withstand | 1 kV I/O common mode IEC 61000-4-5 DC |
Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
