Product Model

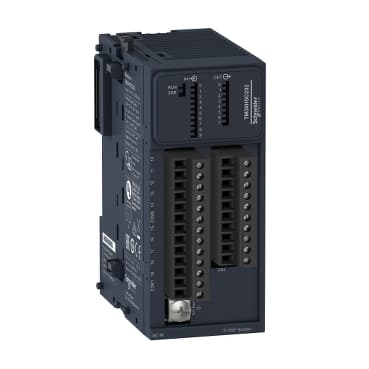

TM3XHSC202
Selling Points
- 1High-speed counting module with 10 inputs and 8 outputs.
- 2Compatible with Modicon TM3 controllers for seamless integration.
- 3Supports advanced counting functions for precise control.
- 4Operates on 24 VDC external supply with ±15% tolerance.
- 5Meets stringent environmental standards with Green Premium certification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM3 | Product or Component Type | Module hight speed counting |
Range Compatibility | Modicon M262 | [Us] rated supply voltage | 24 V DC external supply - 15...20 %) |
Number of input channels | 10 | Number of output channels | 8 |
Discrete I/O number | 18 | Current consumption | 100 mA 5 V DC<br />50 mA 24 V DC |
Counting frequency | 200 kHz | Discrete input voltage | 24 V DC |
electrical circuit type | Standard input<br />Latch input | Discrete input logic | Sink or source |
Output voltage | 24 V DC transistor output | Output voltage limits | 30 V DC |
Discrete output current | 300 mA fast output Q0...Q7) | Discrete output logic | Source |
Output protection type | Against overload and short-circuits | Reset | Automatic reset |
Local signalling | 1 LED I/O<br />1 LED RUN<br />1 LED ERR | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
Services | HSC simple One shot/Modulo<br />HSC main single phase One shot/Modulo/Event counting<br />HSC main dual phase Modulo/Free-large<br />Period meter Edge to Edge, Edge to Opposite | Counting mode | 2 main expert function (main counting function, frequency meter, period meter)<br />Max 8 simple counting function |
Event management | No event<br />Thresholds < 10 µs | Height | 3.5 in (90 mm) |
Depth | 3.3 in (85 mm) | Width | 1.5 in (39 mm) |
Net Weight | 5.3 oz (150 g) | Product Certifications | cULus<br />IACS E10<br />RCM<br />CE<br />UKCA<br />EAC |
Standards | CSA C22.2 No 142<br />ANSI/ISA 12-12-01<br />UL 1604<br />CSA C22.2 No 213<br />EN/IEC 61131-2:2007<br />UL 508<br />EN/IEC 61010-2-201 | Resistance to electrostatic discharge | 8 kV in air EN/IEC 61000-4-2<br />4 kV on contact EN/IEC 61000-4-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3 | Resistance to fast transients | 2 kV alimentation cableEN/IEC 61000-4-4<br />1 kV Ethernet lineEN/IEC 61000-4-4<br />1 kV serial linkEN/IEC 61000-4-4<br />1 kV inputEN/IEC 61000-4-4<br />1 kV transistor outputEN/IEC 61000-4-4 |
Resistance to conducted disturbances | 10 V 0.15...80 MHz EN/IEC 61000-4-4 | Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP10…150 kHz EN/IEC 55011<br />Conducted emissions 63 dBμV/m QP1.5…30 MHz EN/IEC 55011<br />Radiated emissions 40 dBµV/m class A30…230 MHz EN/IEC 55011<br />Conducted emissions 79...63 dBμV/m QP150…1500 kHz EN/IEC 55011<br />Radiated emissions 47 dBµV/m class A230…1000 MHz EN/IEC 55011 |
Ambient Air Temperature for Operation | -4…140 °F (-20…60 °C) horizontal installation<br />-4…122 °F (-20…50 °C) vertical installation | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 2…8.4 Hz DIN rail<br />1 gn 8.4…200 Hz DIN rail<br />3.5 mm 2…8.4 Hz panel<br />1 gn 8.4…200 Hz panel |
Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
