Product Model

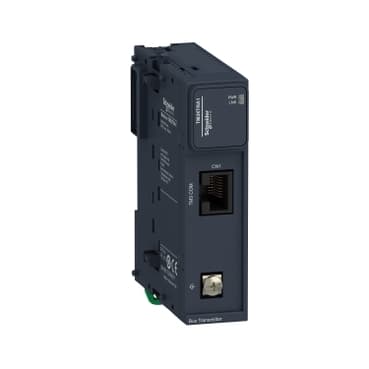

TM3XTRA1
Selling Points
- 1Compact Design: 23.65 mm W x 73.3 mm D x 90 mm H dimensions.
- 2Durable Construction: Screw connector terminals for secure connections.
- 3Temperature Resilience: Operates between -10 to 55°C ambient horizontal.
- 4Energy Efficiency: Current consumption of 100mA, 30mA at 5V DC via bus connector.
- 5Compliance Standards: CSA Certified, UL Listed, REACH Compliant, RoHS Compliant.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM3 | Product or Component Type | Remote transmitter module |
Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Current consumption | 100 mA 5 V DC via bus connector at state on<br />30 mA 5 V DC via bus connector at state off |
Maximum power dissipation in W | 0.6 W | Cable distance between devices | 0.02…0.2 in (0.5…5 mm) extension cable 2 RJ45 between receiver and transmitter |
Local signalling | for power supply 1 LED (green)<br /> for link status 1 LED (green) | Electrical connection | RJ45 connector for connecting the bus receiver<br />Screw connector terminal for connecting the functional ground |
Marking | CE | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />6 kV on contact IEC 61000-4-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
Height | 3.5 in (90 mm) | Depth | 2.9 in (73.3 mm) |
Width | 0.93 in (23.65 mm) | Net Weight | 0.143 lb(US) (0.065 kg) |
Standards | Class I Division 2 Groups A/B/C/D CSA C22.2 No 213<br />Class I Division 2 Groups A/B/C UL 1604<br /> CSA C22.2 No 142<br /> IEC 61131-2<br /> UL 508 | Product Certifications | Merchant Navy<br />C-tick<br />GOST<br />CSA HazLoc<br />CE<br />UKCA<br />RCM<br />EAC<br />cULus |
Ambient air temperature for operation | 14…131 °F (-10…55 °C) horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Relative Humidity | 5…95 % without condensation | IP degree of protection | IP20 with protective cover in place |
Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
