Product Model

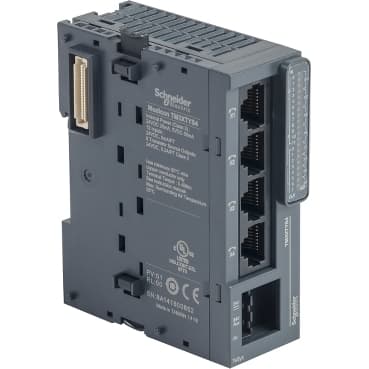

TM3XTYS4
Selling Points
- 1Efficient Motor Control Interface: Seamlessly integrates with TeSys U and D systems for precise motor control.
- 212 Input Channels & 8 Output Channels: Supports multiple inputs and outputs for comprehensive control.
- 324V DC Power Supply: Removable screw terminal block for easy electrical connection.
- 4RJ45 Connectors for Motor Starters: Four RJ45 connectors for secure and reliable motor starter connections.
- 5Compact Design & Easy Installation: Dimensions 30mm x 85mm x 90mm, weighing 0.115kg, with simple interlocking assembly mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM3 | Product or Component Type | Parallel interface module |
Product Specific Application | TeSys U | Range Compatibility | Modicon M221<br />Modicon M251<br />Modicon M241<br />Modicon M262 |
[Us] rated supply voltage | 24 V DC external supply - 15...20 %) | Number of input channels | 12 |
Number of output channels | 8 | Current consumption | 5 mA 5 V DC via bus connector at state on<br />35 mA 5 V DC via bus connector at state off<br />0 mA 24 V DC via bus connector at state on<br />10 mA 24 V DC via bus connector at state off<br />1200 mA 24 V DC external power supply at state on |
Input voltage limits | 19.2...28.8 V per input | Input current limits | 5 mA per input |
Response time | < 10 ms turn-on input<br />< 10 ms turn-off input | Output voltage | 24 V DC transistor output |
Maximum load current | 800 mA per channel starting mode 100 ms<br />300 mA per channel normal mode | Insulation | Between the RJ45 connectors and internal logic 500 V AC<br />Non-insulated between RJ45 connectors |
Output protection type | Against overload current limiter | Reset | Automatic reset |
Local signalling | 3 LEDs green per channel input status<br />2 LEDs green per channel output status | Electrical connection | 3 x 2.5 mm² removable screw terminal block pitch 5.08 mm for connecting the 24 V DC power supply<br /> 4 RJ45 connectors for connecting the motor starters |
Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
Depth | 3.3 in (85 mm) | Width | 1.2 in (30 mm) |
Net Weight | 0.254 lb(US) (0.115 kg) | Product Certifications | CE<br />cULus<br />UKCA<br />RCM<br />EAC |
marking | CE | Resistance to electrostatic discharge | 8 kV in air EN/IEC 61000-4-2<br />4 kV on contact EN/IEC 61000-4-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz EN/IEC 61000-4-8 |
Resistance to fast transients | 1 kV inputEN/IEC 61000-4-4<br />1 kV outputEN/IEC 61000-4-4 | Surge withstand | 1 kV input common mode EN/IEC 61000-4-5<br />1 kV output common mode EN/IEC 61000-4-5 |
Resistance to conducted disturbances | 10 V 0.15...80 MHz EN/IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz EN/IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz EN/IEC 55011 |
Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
