Product Model

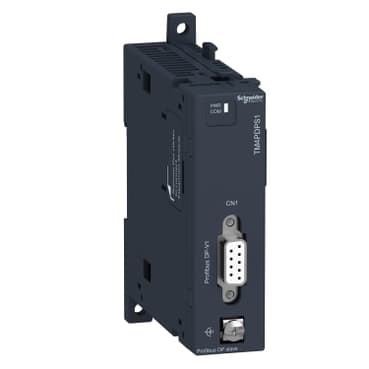

TM4PDPS1
Selling Points
- 1High-Speed Communication: Supports up to 12 Mbit/s transfer rate for efficient data transmission.
- 2Robust Connectivity: Equipped with a 9-pin SUB-D female connector for reliable PROFIBUS DP connections.
- 3Versatile Compatibility: Compatible with Modicon M241 and M251 logic controllers, ensuring seamless integration.
- 4Status LEDs: Features green, yellow, and red status LEDs for easy monitoring of module status and communication.
- 5Durable Design: IP20 rated with protective cover, ensuring protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product or Component Type | Profibus DP communication module | Range Compatibility | Modicon M251<br />Modicon M241 |
Product compatibility | Modicon M241 logic controller<br />Modicon M251 logic controller | Current consumption | 290 mA 5 V DC communication bus |
Power dissipation in W | 1.5 W | Integrated connection type | Profibus DP female SUB-D 9 |
Transmission rate | 1.5 Mbit/s 656.2 ft (200 m)<br />500 kbit/s 1312.3 ft (400 m)<br />187.5 kbit/s 3280.8 ft (1000 m)<br />9.6...93.75 kbit/s 3937.008 ft (1200 m)<br />3...12 Mbit/s 328.08 ft (100 m) | communication port protocol | Profibus DP V0<br />Profibus DP V1 |
Insulation | Between bus and internal logic 1000 V DC | Local signalling | for power supply 1 LED (green/yellow)<br /> for communication 1 LED (green/red) |
Electrical connection | Screw connector terminal for connecting the functional ground<br />SUB-D 9 1 female connector for connecting Profibus | Marking | CE |
Surge withstand | 1 kV power lines (DC) common mode IEC 61000-4-5<br />2 kV power lines (AC) common mode IEC 61000-4-5<br />2 kV relay output common mode IEC 61000-4-5<br />1 kV I/O common mode IEC 61000-4-5<br />1 kV shielded cable common mode IEC 61000-4-5<br />0.5 kV power lines (DC) differential mode IEC 61000-4-5<br />1 kV power lines (AC) differential mode IEC 61000-4-5<br />1 kV relay output differential mode IEC 61000-4-5<br />0.5 kV I/O differential mode IEC 61000-4-5 | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
Width | 1.0 in (25 mm) | Height | 3.5 in (90 mm) |
Depth | 3.5 in (90 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
Standards | IEC 61131-2<br />UL 508<br />EIA-485 | Product Certifications | C-tick<br />cULus |
Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2<br />8 kV in air Marine specification (LR, ABS, DNV, GL)<br />6 kV on contact Marine specification (LR, ABS, DNV, GL) | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 |
Resistance to fast transients | 2 kV IEC 61000-4-4 power lines)<br />2 kV IEC 61000-4-4 relay output)<br />1.5 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 Ethernet line)<br />1 kV IEC 61000-4-4 serial link) | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)<br />10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
Electromagnetic emission | Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15…0.5 MHz IEC 55011<br />Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5…300 MHz IEC 55011<br />Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011<br />Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011<br />Radiated emissions 40 dBμV/m QP class A30…230 MHz IEC 55011<br />Radiated emissions 60...54 dBμV/m QP30…100 MHz Marine specification (LR, ABS, DNV, GL)<br />Radiated emissions 24 dBμV/m QP156…165 MHz Marine specification (LR, ABS, DNV, GL)<br />Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A230…1000 MHz IEC 55011<br />Radiated emissions 80...50 dμV/m QP150…30000 kHz Marine specification (LR, ABS, DNV, GL)<br />Radiated emissions 54 dBμV/m QP100…2000 MHz Marine specification (LR, ABS, DNV, GL) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation<br />14…122 °F (-10…50 °C) vertical installation |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
IP degree of protection | IP20 with protective cover in place | Pollution degree | 2 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 1 mm 5…13.2 Hz symmetrical rail<br />3 gn 8.7…150 Hz symmetrical rail<br />1 mm 5…13.2 Hz panel mounting<br />0.7 gn 13.2…100 Hz panel mounting | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
