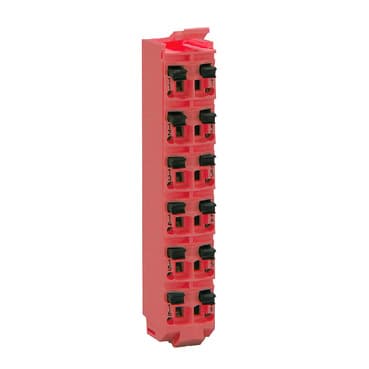

Product Model
TM5ACTB5FFS
Selling Points
- 1Compact 16-contact terminal block for Modicon TM5 safety I/O modules.
- 2Compatible with Modicon M258 and LMC058 logic controllers.
- 3Red color indicates safety I/O module compatibility.
- 4Suitable for PacDrive 3 accessories and industrial applications.
- 5Durable construction with copper conductors for reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM5 | accessory / separate part type | Terminal block |
accessory / separate part category | Connection accessory | Product compatibility | TM5 safety I/O modules 24 V DC |
Number of terminals | 16 | Sale per indivisible quantity | 1 |
Range Compatibility | Modicon M258<br />Modicon LMC058 | Color | Red |
Cable cross section | 0.0001…0.002 in² (0.08…1.5 mm²) AWG 28...AWG 16, solid<br />0.0004…0.002 in² (0.25…1.5 mm²) AWG 24...AWG 16, wire<br />0.0004…0.001 in² (0.25…0.75 mm²) AWG 24...AWG 20 with cable end | Conductor material | Copper |
Net Weight | 0.040 lb(US) (0.018 kg) |
Specifications may be subject to change without notice
