Product Model

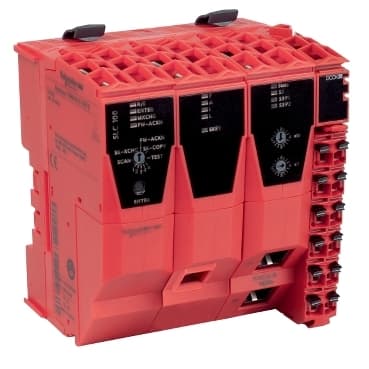

TM5CSLC100FS
Selling Points
- 1High-Performance Safe Logic Controller: Designed for complex machinery and material handling systems.
- 2SIL 3 Safety Integrity Level: Meets stringent safety standards with SIL 3 certification.
- 320 Safety Nodes Supported: Handles up to 20 safety-related modules via Sercos III interface.
- 4Fanless Cooling and Redundancy: Ensures reliable operation with fanless cooling and dual internal switches.
- 5Compact and Durable Design: Measures 87.5mm x 75mm x 99mm, weighing 0.29kg, with IP20 rating for protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM5 | Product or Component Type | Controller system |
Device Application | Safety logic controller | Processor name | Intel Xscale 266 MHz |
Reverse polarity protection | Yes | Communication network type | SERCOS III Ethernet) |
Transmission rate | 100 Mbit/s for full duplex | Cycle time | 1 ms |
Realtime clock | With non-volatile memory | Number of devices | 2 shielded RJ45<br />1 memory key slot |
Function Available | Support max 20 safety nodes<br />With 2 internal switch | Maximum cable distance between devices | 328.08 ft (100 m) between station |
Rated voltage | 24 V -15...20 % | Input protection type | Integrated fuse (not interchangeable) |
Power consumption in W | 5.1 W | Type of cooling | Fanless |
marking | CE | Safety level | SIL 3 IEC 61508<br />SIL 3 IEC 62061<br />PL = e EN 13849-1 |
Safety reliability data | PFH < 1E-9<br />MTTFd > 100 years<br />PFD < 1E-5 | Local signalling | for application run or SoSafe debug mode 1 LED (green or orange)<br /> for authorization status 1 LED (green)<br /> for configuration status (Ready) 1 LED (orange)<br /> for firmware status 1 LED (orange)<br /> for boot status 4 LEDs (red)<br /> for memory key status 1 LED (orange) |
Color | Red | Width | 3.4 in (87.5 mm) |
Height | 3.9 in (99 mm) | Depth | 3.0 in (75 mm) |
Net Weight | 0.64 lb(US) (0.29 kg) | Ambient air temperature for operation | 32…113 °F (0…45 °C) vertical installation)<br />32…131 °F (0…55 °C) horizontal installation) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
IP Degree of Protection | IP20 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Standards | IEC 61511<br />IEC 61131-2<br />EN 13849-1<br />IEC 61508<br />IEC 62061 | Product Certifications | GOST-R<br />cULus |
Specifications may be subject to change without notice
