Product Model

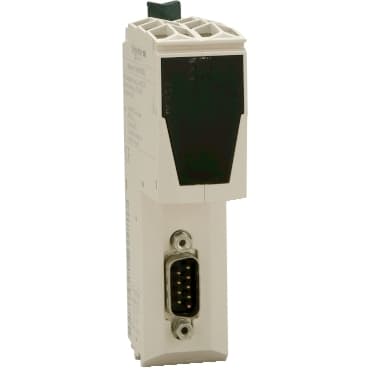

TM5PCDPS
Selling Points
- 1Flexible Configuration: Scalable configuration of remote or distributed IO islands for Modicon controllers.
- 2High Performance: High-performance and safe IP20 modular I/O system designed for complex machines.
- 3Certified Standards: Meets IEC 61131-2, UL 508, CSA C22.2 No 213, and CSA C22.2 No 142 standards.
- 4Easy Installation: Mounts on a 35mm DIN rail for easy integration into existing systems.
- 5Wide Compatibility: Compatible with Modicon TM258LD42DT4L, TM258LF42DT4L, TM258LF42DR, and TM258LF66DT4L logic controllers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM5 | Product or Component Type | Profibus DP communication module |
Physical interface | RS485 | Range Compatibility | Modicon M258<br />Modicon LMC058 |
Product Compatibility | Motion controller<br />Logic controller | Method of access | Slave V1 |
Integrated connection type | 1 isolated serial link, female SUB-D 9 Profibus DP RS485), <= 12 Mbit/s | marking | CE |
Net Weight | 0.11 lb(US) (0.05 kg) | Standards | CSA C22.2 No 213<br />UL 508<br />CSA C22.2 No 142<br />IEC 61131-2 |
Product Certifications | CSA<br />cULus<br />GOST-R<br />C-tick | Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
IP degree of protection | IP20IEC 61131-2 | Pollution degree | 2 IEC 60664 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80 MHz...2 GHz IEC 61000-4-3 |
Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
