Product Model

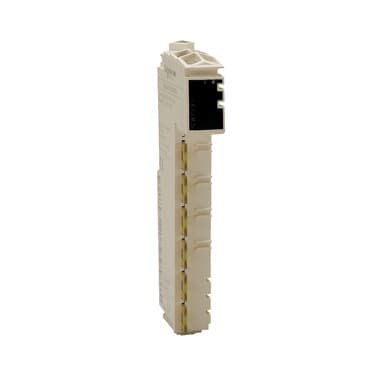

TM5SAI4L
Selling Points
- 1High-Resolution Analog-to-Digital Conversion: Captures subtle changes in input signals with 12-bit resolution.
- 2Versatile Analog Input Signals: Supports voltage (+/-10V) and current (0-20mA, 4-20mA) inputs.
- 3Compact and Rugged Design: Suitable for space-constrained installations and harsh industrial environments.
- 4Easy Installation and Maintenance: User-friendly design with LED indicators for power supply and input status.
- 5Comprehensive Environmental Performance: Operates in temperatures from 0 to 50°C vertically, 0 to 55°C without derating horizontally, and 0 to 60°C with derating horizontally.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM5 | Product or Component Type | Analog input module |
Analogue input number | 4 | Analogue input type | voltage +/- 10 V differential<br /> current 0...20 mA/4...20 mA differential |
Analogue input resolution | 12 bits + sign +/- 10 V<br />12 bits 0...20 mA/4...20 mA | Range Compatibility | Modicon M258<br />Modicon LMC058 |
Product Compatibility | Motion controller<br />Logic controller | Measurement resolution | 2.441 mV, +/- 10 V<br />4.883 µA, 0...20 mA/4...20 mA |
Color | White | Input impedance | >= 20 mOhm voltage |
Load impedance ohmic | <= 400 Ohm current) | Sampling duration | 1 ms all inputs with filtering<br />400 µs all inputs without filtering |
Measurement error | < 0.08 % of full scale +/- 10 V +/- 10 V 25 °C<br />< 0.08 % of full scale 0...20 mA/4...20 mA 25 °C | Temperature coefficient | +/- 0.009 %FS/°C current<br />+/- 0.006 %FS/°C voltage |
Non-linearity | < 0.025 %FS voltage<br />< 0.05 %FS current | Type of Cable | Shielded cable |
Isolation | No insulation between channels<br />500 Vrms AC insulation between channel and bus | Supply | Internal |
[Us] rated supply voltage | 24 V DC -15...20 % | Common mode rejection | > 70 dB |
Local signalling | 1 LED green power supply<br />1 LED red power supply<br />4 LEDs green input status | Current consumption | 2 mA 5 V DC bus<br />46 mA 24 V DC input/output |
Maximum power dissipation in W | 1.11 W | marking | CE |
Net Weight | 0.055 lb(US) (0.025 kg) | Standards | CSA C22.2 No 213<br />IEC 61131-2<br />UL 508<br />CSA C22.2 No 142 |
Product Certifications | CSA<br />cULus<br />GOST-R<br />C-tick | Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % without condensation |
IP degree of protection | IP20IEC 61131-2 | Pollution degree | 2 IEC 60664 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 |
Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
