Product Model

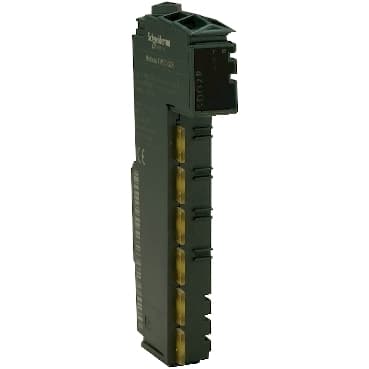

TM5SDI4A
Selling Points
- 1Flexible and Scalable I/O Configuration: Easily adjust the number of I/O channels to meet your specific needs.
- 2Embedded Diagnostics: Local and distant supervision capabilities for enhanced monitoring and maintenance.
- 3Hot Swapping of I/O Modules: Quickly replace modules without disrupting the system.
- 4Cabling Simplicity: Spring terminals and removable terminal blocks simplify cabling.
- 5High Performance and Safety: IP20 modular I/O system ensures high performance and safety in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM5 | Product or Component Type | Discrete input module |
Discrete input number | 4 | Discrete input voltage | 100...240 V |
Range Compatibility | Modicon M258<br />Modicon LMC058<br />PacDrive LMC motion controller | Product Compatibility | PacDrive LMC Pro<br />Logic controller<br />PacDrive LMC Pro 2<br />Motion controller<br />PacDrive LMC Eco |
Discrete input voltage type | AC | input voltage limits | 100...240 V |
Discrete input current | 5…11 mA | Color | Black |
Input filtering | <= 25 ms configurable by software<br /><= 30 ms hardware from state 1 to state 0<br /><= 40 ms hardware from state 0 to state 1 | Isolation | No insulation between channels<br />2500 V AC insulation between channel and bus for 1 minute |
Current consumption | 34 mA 5 V DC bus | Maximum power dissipation in W | 1.08 W |
Local signalling | 1 LED green power supply<br />1 LED red power supply<br />4 LEDs green input status | Electrical connection | 2 wires |
marking | CE | Net Weight | 0.055 lb(US) (0.025 kg) |
Standards | UL 508<br />CSA C22.2 No 142<br />IEC 61131-2<br />CSA C22.2 No 213 | Product Certifications | cULus<br />CSA<br />GOST-R<br />C-tick |
Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation)<br />14…140 °F (-10…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Relative Humidity | 5…95 % without condensation | IP degree of protection | IP20IEC 61131-2 |
Pollution degree | 2 IEC 60664 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail |
Shock resistance | 15 gn 11 ms | Electromagnetic compatibility | Electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2<br />Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2<br />Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3<br />Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3<br />Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4<br />1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5<br />1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5<br />Conducted RF disturbances IEC 61000-4-6<br />Conducted and radiated emissions CISPR 11 |
Specifications may be subject to change without notice
