Product Model

TM5SDM8DTS

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34169

In Stock
Last updated: 2025/4/22
View Specifications

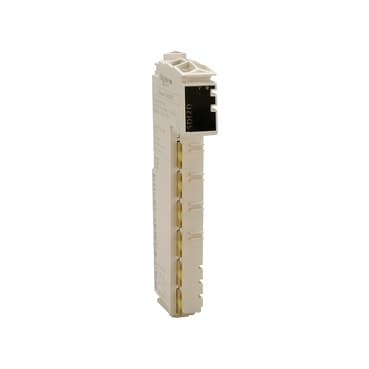

schneider TM5SDM8DTS

Selling Points

  • 1Flexible and Scalable Configuration: The TM5SDM8DTS module offers a flexible and scalable configuration for remote or distributed IO islands, compatible with Modicon and PacDrive controllers.
  • 2High-Performance Automation: Designed for high-performance automation, this module provides 4 discrete inputs and outputs with a voltage range of 24V DC.
  • 3Compact Design: Compact design with a single wire for electrical connection, making it easy to install on a 35mm DIN rail.
  • 4Enhanced Safety Features: Includes isolation between channel and bus at 1500V AC for 1min, ensuring enhanced safety in industrial applications.
  • 5Comprehensive Certifications: Certified by GOST-R, cULus, CE, C-Tick, and CSA, meeting international standards for reliability and safety.
Product Details
TM5SDM8DTS
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon TM5
Product or Component Type
Discrete I/O module
Discrete input number
4
Discrete input voltage
24 V
Discrete output number
4
Discrete output type
Transistor
Range Compatibility
PacDrive LMC motion controller
Product Compatibility
PacDrive LMC Pro 2<br />PacDrive LMC Pro<br />PacDrive LMC Eco
Discrete input voltage type
DC
input voltage limits
20.4...28.8 V
Discrete input logic
Sink
Discrete input current
1.3 mA
input impedance
18.4 kOhm
Output voltage
24 V DC
Output voltage limits
20.4...28.8 V
Discrete output logic
Source
Current per channel
0.1 A
Maximum current per output common
0.4 A
Color
White
Peak output current
0.4 A
Switching frequency
<= 16 kHz resistive
Input filtering
>= 2 µs hardware
Response time
<= 2 µs from state 0 to state 1 output<br /><= 2 µs from state 1 to state 0 output
Maximum leakage current
25 µA when switched off
Protection Type
Overload protection<br />Short-circuit protection<br />Inductive overvoltage
Isolation
No insulation between channels<br />500 Vrms AC insulation between channel and bus
Maximum voltage drop
<0.9 V at 0.1 A output
Maximum supply current for sensors
600 mA
Current consumption
2 mA 5 V DC bus<br />62.5 mA 24 V DC input/output
Maximum power dissipation in W
1.51 W
Local signalling
1 LED green power supply<br />1 LED red power supply<br />8 LEDs input/output status
Electrical connection
1 wire
Net Weight
0.055 lb(US) (0.025 kg)
Standards
UL 508<br />CSA C22.2 No 142<br />IEC 61131-2
Product Certifications
EAC<br />cULus<br />CE<br />C-tick
Ambient air temperature for operation
14…140 °F (-10…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) with derating factor vertical installation)
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Relative Humidity
5…95 % without condensation
IP degree of protection
IP20IEC 60529
Pollution degree
2 IEC 61131-2
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail
Shock resistance
15 gn 11 ms
Electromagnetic compatibility
Electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2<br />Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2<br />Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3<br />Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4<br />1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5<br />1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5<br />Conducted RF disturbances IEC 61000-4-6<br />Conducted and radiated emissions CISPR 11

Specifications may be subject to change without notice
