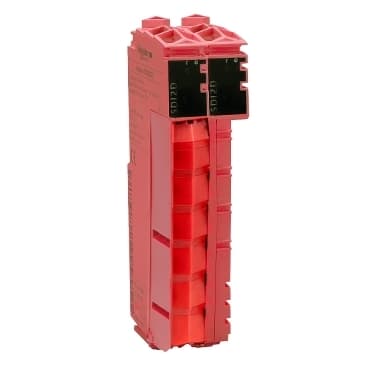

schneider TM5SDO2DTRFS

Selling Points

  • 1SIL 3 compliant and 500V AC isolation ensure high safety standards.
  • 2Compatible with 24V DC and 230V AC, suitable for various industrial applications.
  • 3Each channel supports up to 6A, making it ideal for demanding tasks.
  • 4≤50 ms response time for quick and efficient output.
  • 5Weighs only 0.101 kg, making it easy to integrate into your system.
Product Details
TM5SDO2DTRFS
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon TM5
Product or Component Type
Discrete output module
Discrete output number
2
Discrete output type
Relay
Range Compatibility
PacDrive LMC motion controller
Product Compatibility
PacDrive LMC Pro 2<br />PacDrive LMC Pro<br />PacDrive LMC Eco
Output voltage
24 V DC<br />230 V AC
Output voltage limits
5...230 V AC<br />5...24 V DC
Discrete output function
2 NO
Current per channel
6 A
Color
Red
Response time
<= 50 ms
Protection Type
Reverse polarity protection<br />Without short-circuit protection<br />Without overload protection
Isolation
No insulation between channels<br />500 Vrms AC insulation between channel and bus
Maximum power consumption in W
1.15 W internal<br />0.26 W bus
Maximum power dissipation in W
2.3 W
marking
CE
Safety level
SIL 3 IEC 61508<br />SIL 3 IEC 62061<br />PL = e EN 13849-1
Safety reliability data
MTTFd > 100 years<br />PFD < 1E-5<br />PFH < 1E-9<br />B10d = 780000 DC-1, 24 V, <6 A<br />B10d = 780000 AC-1, 230 V, <6 A<br />B10d = 1960000 AC-15, 230 V, <3 A<br />B10d = 780000 DC-15, 24 V, <5 A
Net Weight
0.223 lb(US) (0.101 kg)
Standards
IEC 61508<br />UL 508<br />EN 13849-1<br />IEC 62061
Product Certifications
cULus
Ambient air temperature for operation
32…122 °F (0…50 °C) vertical installation)<br />32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Relative Humidity
5…95 % without condensation
IP degree of protection
IP20IEC 61131-2
Pollution degree
2 IEC 60664
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…9842.5 ft (0…3000 m)
Vibration resistance
1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail
Shock resistance
15 gn 11 ms
Electromagnetic compatibility
Electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2<br />Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2<br />Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3<br />Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3<br />Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4<br />1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5<br />1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5<br />Conducted RF disturbances IEC 61000-4-6<br />Conducted and radiated emissions CISPR 11

Specifications may be subject to change without notice
