Product Model

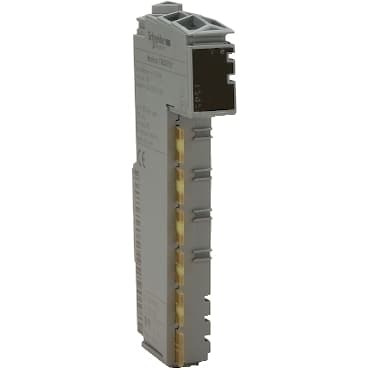

TM5SPS1
Selling Points
- 1Flexible I/O Configuration: Supports distributed I/Os via CANopen interface and local/remote expansion via TM5 expansion bus.
- 2Simplified Maintenance: Embedded diagnostics for local and distant supervision, hot swapping of I/O modules.
- 3High Compatibility: Fully compatible with SoMachine software and certified FDT/DTM technology for automation software systems.
- 4Cabling Simplicity: Uses spring terminals and removable terminal blocks for easy cabling.
- 5Environmental Compliance: Part of Schneider Electric’s Green Premium products, ensuring compliance with latest regulations and low environmental impact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM5 | Product or Component Type | Power distribution module |
Product Specific Application | Supply 24 V DC I/O modules | Range Compatibility | Modicon M258<br />Modicon LMC058 |
Product Compatibility | Logic controller<br />Motion controller | [Us] rated supply voltage | 24 V |
Network type | DC | current supplied | 10 A I/O power segment |
Maximum power dissipation in W | 0.8 W | Color | Gray |
Short-circuit protection | 10 A external fuse | Current consumption | <= 25 mA 24 V DC |
marking | CE | Standards | CSA C22.2 No 142<br />CSA C22.2 No 213<br />UL 508<br />IEC 61131-2 |
Product Certifications | GOST-R<br />C-tick<br />cULus<br />CSA | Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation)<br />131…140 °F (55…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % without condensation |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
Resistance to electrostatic discharge | 4 kV on contact EN/IEC 61000-4-2<br />8 kV in air EN/IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz EN/IEC 61000-4-3 |
Resistance to fast transients | 1 kV EN/IEC 61000-4-4 I/O)<br />1 kV EN/IEC 61000-4-4 shielded cable)<br />2 kV EN/IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode EN/IEC 61000-4-5<br />1 kV common mode EN/IEC 61000-4-5 |
Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
