Product Model

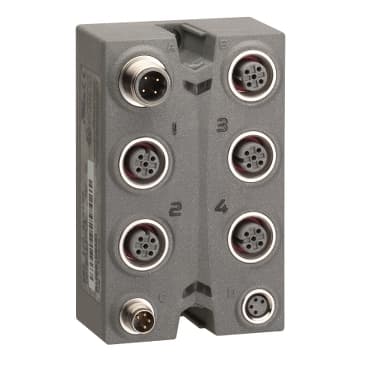

TM7BAI4TLA
Selling Points
- 1IP67 Rating for Durability: Designed to withstand harsh environments with an IP67 rating.
- 24 RTD Inputs: Supports four RTD (Resistance Temperature Detector) inputs for precise temperature measurement.
- 316-Bit Resolution: Offers high-resolution analog inputs with 16-bit resolution for accurate data capture.
- 4M12 Connector Compatibility: Equipped with an M12 connector for easy and secure connections.
- 524V DC Power Supply: Operates on a 24V DC power supply, ensuring reliable operation in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM7 | Product or Component Type | Analog I/O expansion block |
Range Compatibility | Modicon M258<br />Modicon LMC058 | Enclosure Material | Plastic |
Bus type | TM7 bus | [Ue] rated operational voltage | 24 V DC |
Input/output number | 4 | input/output number of block | 4 I |
Analogue input number | 4 | Analogue Input Type | KTY 84 silicon temperature probe<br />KTY 10 silicon temperature probe<br />Pt 1000 temperature probe<br />Pt 100 temperature probe |
Analogue input resolution | 16 bits | input impedance | 0...3276 Ohm |
Sensor power supply | 24 V overload, short-circuit and reverse polarity protection | Electrical connection | 1 male connector M12 - B coding - 4 ways bus IN<br />1 female connector M12 - B coding - 4 ways bus OUT<br />4 female connectors M12 - A coding - 5 ways sensor<br />1 male connector M8 - 4 ways power IN<br />1 female connector M8 - 4 ways power OUT |
Local signalling | for bus diagnostic 2 LEDs<br /> for sensor/actuator power supply status 2 LEDs | Operating position | Any position |
Fixing Mode | By 2 screws | Net Weight | 0.4 lb(US) (0.2 kg) |
Standards | IEC 61131-2 | Product Certifications | GOST-R<br />ATEX II 3g EEx nA II T5<br />cURus<br />C-tick |
marking | CE | Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) | Relative humidity | 5…95 % without condensation or dripping water |
Pollution degree | 2 IEC 60664 | IP degree of protection | IP67 conforming to IEC 61131-2 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 7.5 mm constant amplitude 2…8 Hz)IEC 60721-3-5 Class 5M3<br />2 gn constant acceleration 8…200 Hz)IEC 60721-3-5 Class 5M3<br />4 gn constant acceleration 200…500 Hz)IEC 60721-3-5 Class 5M3 | Shock resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
Resistance to electrostatic discharge | 6 kV in contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 0.08…2 Hz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2…2.7 Hz IEC 61000-4-3 |
Resistance to fast transients | 2 kV IEC 61000-4-4 power supply)<br />1 kV IEC 61000-4-4 input/output)<br />1 kV IEC 61000-4-4 shielded cable) | surge withstand for DC 24 V circuit | 1 kV power supply (common mode) IEC 61000-4-5<br />0.5 kV power supply (differential mode) IEC 61000-4-5<br />1 kV unshielded links (common mode) IEC 61000-4-5<br />0.5 kV unshielded links (differential mode) IEC 61000-4-5<br />1 kV shielded links (common mode) IEC 61000-4-5<br />0.5 kV shielded links (differential mode) IEC 61000-4-5 |
Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
