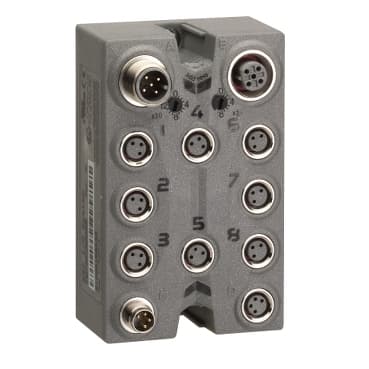

Product Model
TM7NCOM08B
Selling Points
- 1Designed to withstand harsh industrial conditions with an IP67 rating.
- 2Seamlessly integrates with CANopen networks for efficient communication.
- 3Equipped with 8 M8 connectors for reliable and secure connections.
- 4Operates within a wide temperature range of -10 to 60°C.
- 5Meets RoHS and ATEX compliance standards for safe operation in explosive environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TM7 | Product or Component Type | CANopen interface I/O block |
Range Compatibility | Modicon LMC058<br />Modicon M258 | Enclosure Material | Plastic |
Bus type | CANopen | [Ue] rated operational voltage | 24 V DC |
Input/output number | 8 | input/output number of block | 8 I/O |
Discrete input number | 0…8 configurable by software | Discrete input voltage | 24 V |
Discrete input voltage type | DC | Discrete input current | 4.4 mA |
Discrete input logic | Positive | Discrete output number | 0…8 configurable by software |
Discrete output voltage | 24 V | Discrete output voltage type | DC |
Discrete output current | <= 0.5 A | Discrete output type | Transistor |
Sensor power supply | 24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection | Electrical connection | 1 male connector M12 - A coding - 5 ways CANopen bus IN<br />1 female connector M12 - B coding - 4 ways TM7 bus OUT<br />8 female connectors M8 - 3 ways sensor or actuator<br />1 male connector M8 - 4 ways power IN<br />1 female connector M8 - 4 ways power OUT |
Local signalling | for bus diagnostic 2 LEDs<br /> for actuator power supply diagnostics 1 LED<br /> for sensor power supply diagnostics 1 LED | Operating position | Any position |
Fixing Mode | By 2 screws | Net Weight | 0.430 lb(US) (0.195 kg) |
Standards | IEC 61131-2 | Product Certifications | cURus<br />ATEX II 3g EEx nA II T5<br />GOST-R<br />C-tick |
marking | CE | Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) | Relative humidity | 5…95 % without condensation or dripping water |
Pollution degree | 2 IEC 60664 | IP degree of protection | IP67 conforming to IEC 61131-2 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
Vibration resistance | 7.5 mm constant amplitude 2…8 Hz)IEC 60721-3-5 Class 5M3<br />2 gn constant acceleration 8…200 Hz)IEC 60721-3-5 Class 5M3<br />4 gn constant acceleration 200…500 Hz)IEC 60721-3-5 Class 5M3 | Shock resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
Resistance to electrostatic discharge | 6 kV in contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 0.08…2 Hz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2…2.7 Hz IEC 61000-4-3 |
Resistance to fast transients | 2 kV IEC 61000-4-4 power supply)<br />1 kV IEC 61000-4-4 input/output)<br />1 kV IEC 61000-4-4 shielded cable) | surge withstand for DC 24 V circuit | 1 kV power supply (common mode) IEC 61000-4-5<br />0.5 kV power supply (differential mode) IEC 61000-4-5<br />1 kV unshielded links (common mode) IEC 61000-4-5<br />0.5 kV unshielded links (differential mode) IEC 61000-4-5<br />1 kV shielded links (common mode) IEC 61000-4-5<br />0.5 kV shielded links (differential mode) IEC 61000-4-5 |
Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
