Product Model

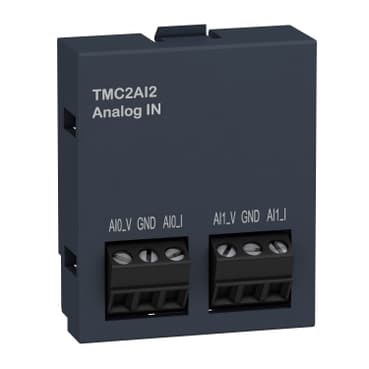

TMC2AI2
Selling Points
- 112-bit resolution for precise data capture.
- 2Dimensions: 15 mm L x 35 mm W x 41 mm H, ideal for space-constrained applications.
- 3Twisted shielded pairs cable and 3.81 mm pitch screw terminal blocks for secure connections.
- 420 ms conversion time ensures fast data processing.
- 5Seamlessly integrates with Modicon M221 Nano PLC for efficient automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M221 | Product or Component Type | Analogue input cartridge |
Product Compatibility | Modicon M221C | Analogue input number | 2 |
Analogue input type | current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V | Analogue input resolution | 12 bits |
LSB value | 2.44 mV 0...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current | Conversion time | 20 ms |
Sampling duration | 10 ms | Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C)<br />+/- 1 % of full scale |
Temperature Drift | +/- 0.02 %FS/°C | Repeat accuracy | +/- 0.5 %FS |
Non-linearity | +/- 0.01 %FS | Cross talk | <= 1 LSB |
Type of Cable | Twisted shielded pairs cable | Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs |
Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input | Insulation | Non-insulated between analogue input and internal logic |
Height | 1.6 in (41 mm) | Depth | 0.6 in (15 mm) |
Width | 1.4 in (35 mm) | Net Weight | 0.033 lb(US) (0.015 kg) |
Permissible continuous overload | 13 V voltage<br />40 mA current | Input impedance | <= 250 Ohm current<br />>= 1 MOhm voltage |
Immunity to microbreaks | 10 ms |
