Product Model

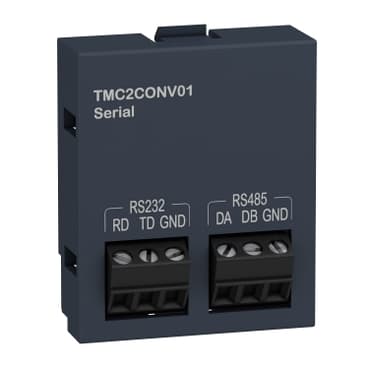

TMC2CONV01
Selling Points
- 1Non-Isolated Serial Link Compatibility: Supports RS232 and RS485 non-isolated serial links for seamless communication.
- 2Modbus Protocol Support: Compatible with Modbus master-slave protocols (RTU/ASCII or SoMachine-Network) for efficient data transfer.
- 3Compact Design: Measuring 1.61 in (41 mm) in height, 0.59 in (15 mm) in depth, and 1.38 in (35 mm) in width, it fits perfectly in industrial settings.
- 4Green Premium Product: Compliant with Green Premium standards, ensuring sustainability and environmental responsibility.
- 5Versatile Applications: Suitable for conveying applications, expanding the capabilities of Modicon M221C systems with minimal installation requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M221 | Product or Component Type | Serial line cartridge |
Product Compatibility | Modicon M221C | Product Specific Application | Conveying applications |
Integrated connection type | Non isolated serial link - screw terminal block RS232<br />Non isolated serial link - screw terminal block RS485 | Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485<br />1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 |
Communication port protocol | Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network | Insulation | Non-insulated between lines and internal logic |
Height | 1.6 in (41 mm) | Depth | 0.6 in (15 mm) |
Width | 1.4 in (35 mm) | Net Weight | 0.033 lb(US) (0.015 kg) |
Specifications may be subject to change without notice
