Product Model

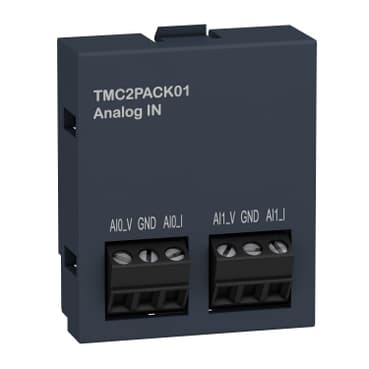

TMC2PACK01
Selling Points
- 1Environmentally Friendly Design: Constructed from materials free of toxic heavy metals, mercury, and PVC.
- 2Versatile Analog Inputs: Accepts 0-10Vdc or 0-20mA / 4-20mA signals with a 12-bit resolution.
- 3Easy Installation: Utilizes screw terminal blocks and supports plug-in mounting for quick setup.
- 4Wide Temperature Range: Operates in ambient air temperatures from +14 to +131°F (-10 to +55°C) and can be stored in temperatures from -13 to +158°F (-25 to +70°C).
- 5High-Resolution Signal Handling: Offers precise signal handling with a resolution of 12 bits for accurate data processing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M221 | Product or Component Type | Analogue input cartridge |
Product Specific Application | Packaging | Product Compatibility | Modicon M221C |
Analogue input number | 2 | Analogue input type | current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V |
Analogue input resolution | 12 bits | LSB value | 2.44 mV 0...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current |
Conversion time | 20 ms | Sampling duration | 10 ms |
Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C)<br />+/- 1 % of full scale | Temperature Drift | +/- 0.02 %FS/°C |
Repeat accuracy | +/- 0.5 %FS | Non-linearity | +/- 0.01 %FS |
Cross talk | <= 1 LSB | Type of Cable | Twisted shielded pairs cable |
Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs | Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
Insulation | Non-insulated between analogue input and internal logic | Height | 1.6 in (41 mm) |
Depth | 0.6 in (15 mm) | Width | 1.4 in (35 mm) |
Net Weight | 0.033 lb(US) (0.015 kg) | Permissible continuous overload | 13 V voltage<br />40 mA current |
Input impedance | <= 250 Ohm current<br />>= 1 MOhm voltage | Immunity to microbreaks | 10 ms |
