Product Model

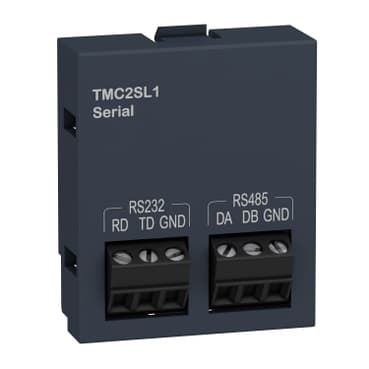

TMC2SL1
Selling Points
- 1Expand Modicon M221 with Non-Isolated Serial Links: Extend your PLC's communication capabilities with RS232 and RS485 connections.
- 2Integrated SD Card and USB Port: Store and transfer data efficiently with built-in SD card and USB ports.
- 3Versatile I/O Options: Enjoy a broad range of inputs and outputs to meet diverse application needs.
- 4Run/Stop Switch and Cartridge Extension: Simplify operation with a run/stop switch and easy cartridge extension.
- 5Compliant with RoHS/REACH Regulations: Ensure environmental sustainability with toxic-free and mercury-free design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M221 | Product or Component Type | Serial line cartridge |
Product Compatibility | Modicon M221C | Integrated connection type | Non isolated serial link - screw terminal block RS232<br />Non isolated serial link - screw terminal block RS485 |
Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485<br />1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 | Communication port protocol | Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network |
Insulation | Non-insulated between lines and internal logic | Height | 1.6 in (41 mm) |
Depth | 0.6 in (15 mm) | Width | 1.4 in (35 mm) |
Net Weight | 0.033 lb(US) (0.015 kg) |
Specifications may be subject to change without notice
