Product Model

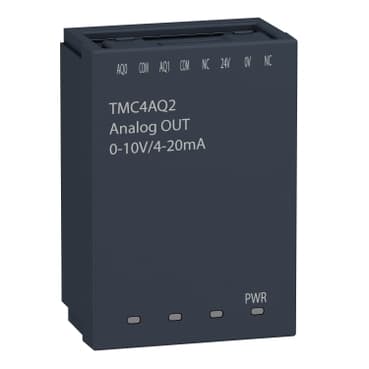

TMC4AQ2
Selling Points
- 1High-Resolution Outputs: 16-bit resolution for precise control.
- 2Wide Output Range: 0-10 Vdc and 4-20 mA (dc) for versatile applications.
- 3Compact Design: Lightweight at 0.055 kg, ideal for compact machine automation.
- 4Robust Connectivity: Shielded cable type with maximum length < 30 m (98.4 ft) for reliable data transfer.
- 5Enhanced Safety Features: Short circuit and open circuit protection for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M241 | Product or Component Type | Analogue output cartridge |
Product Compatibility | Modicon M241C | Analogue output number | 2 |
Analogue output type | Current 4...20 mA<br />Voltage 0...10 V | Analogue output resolution | 16 bits |
LSB value | 1 mV 0...10 V voltage<br />2 µA 4...20 mA current | Load type | Resistive |
Load impedance ohmic | <= 500 Ohm current<br />>= 2 kOhm voltage | Conversion time | 10 ms + 1 controller cycle time |
Stabilisation time | 10 ms | Absolute accuracy error | +/- 0.2 % of full scale at 77 °F (25 °C) |
Temperature Drift | +/- 0.006 %FS/°C | Repeat accuracy | +/- 0.5 %FS |
Non-linearity | +/- 0.05 %FS | Output ripple | +/- 20 mV |
Cross talk | 80 dB | Type of Cable | Twisted shielded pairs cable |
Electrical connection | 1 x 1.5 mm² 1 spring terminal block pitch 3.5 mm for outputs and supply | Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
Insulation | Between output and internal logic 500 V DC<br />Non-insulated between outputs | Supply voltage limits | 20.4…28.8 V |
Local signalling | for PWR 1 LED (green) | Height | 2.0 in (50 mm) |
Depth | 0.8 in (21 mm) | Width | 1.3 in (34 mm) |
Net Weight | 0.121 lb(US) (0.055 kg) | Immunity to microbreaks | 10 ms |
