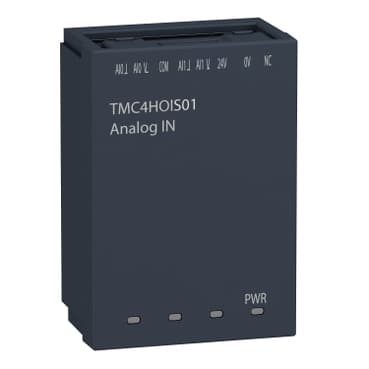

schneider TMC4HOIS01

Selling Points

  • 1High Accuracy: ±0.2% full-scale accuracy at ambient temperature.
  • 2Versatile Inputs: Supports voltage (0...10 V) and current (0...20 mA, 4...20 mA) inputs.
  • 3Compact Design: Dimensions: 2.0 in (50 mm) height, 0.8 in (21 mm) depth, and 1.3 in (34 mm) width.
  • 4Robust Connectivity: Twisted shielded pairs cable with up to 30 meters length, ensuring reliable data transmission.
  • 5Safety Features: Isolation between inputs and internal logic up to 500 V DC, ensuring safe operation in harsh environments.
Product Details
TMC4HOIS01
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M241
Product or Component Type
Analogue input cartridge
Product Specific Application
Hoisting applications
Product Compatibility
Modicon M241C
Analogue input number
2
Analogue input type
current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V
Analogue input resolution
16 bits
LSB value
1 mV voltage 0...10 V<br />2 µA current 0...20 mA<br />2 µA current 4...20 mA
Sampling duration
10 ms
Absolute accuracy error
+/- 0.2 % of full scale at 77 °F (25 °C)
Temperature Drift
+/- 0.006 %FS/°C
Repeat accuracy
+/- 0.2 %FS
Non-linearity
+/- 0.05 %FS
Cross talk
80 dB
Type of Cable
Twisted shielded pairs cable
Electrical connection
1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for inputs and supply
Maximum cable distance between devices
Twisted shielded pairs cable <98.4 ft (30 m) input
Insulation
Between input and internal logic 500 V DC<br />Non-insulated between inputs
Supply voltage limits
20.4…28.8 V
Local signalling
for PWR 1 LED (green)
Height
2.0 in (50 mm)
Depth
0.8 in (21 mm)
Width
1.3 in (34 mm)
Net Weight
0.121 lb(US) (0.055 kg)
Permissible continuous overload
40 mA current<br />30 V voltage
Input impedance
<= 250 Ohm current<br />>= 1 MOhm voltage
Immunity to microbreaks
10 ms

Specifications may be subject to change without notice
