Product Model

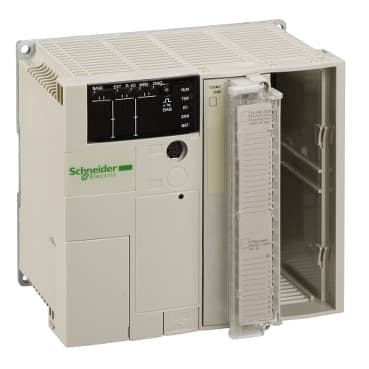

TSX3708056DR1
Selling Points
- 1Modular design with 3 slots for flexible configuration.
- 2Supports 32 discrete inputs and 24 relay outputs.
- 3Compatible with primary voltage of 100V to 240V AC.
- 4Integrated connections include Uni-Telway and Modbus RTU.
- 5Suitable for machine and manufacturing control applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Modular base controller |
Primary voltage | 100...240 V 90…264 V AC | Input current | 2 mA 60 A |
Immunity to microbreaks | 20 ms | Output Current | 0.5 A |
Number of slots | 3 | Module type | Screw terminal discrete I/O |
Discrete input number | 32 24 V DC | Discrete output number | 24 relay |
Integrated connection type | 1 serial link Uni-Telway 19.2 kbit/s<br />1 Modbus Modbus RTU 19.2 kbit/s | Memory description | Internal RAM 11 Kwords data<br />Flash 12 Kwords data |
Maximum size of object areas | 256 %Mi<br />128 %KWi constant words<br />1 %MWi internal words | Execution time per instruction | 0.25 µs Boolean without PCMCIA card<br />4.81 µs arithmetic REAL floating without PCMCIA card |
Execution time for 1 Kinstruction | 3.03 100 % Boolean without PCMCIA card<br />0.25 65 % Boolean and 35 % numerical without PCMCIA card | Application structure | 1 master task<br />1 fast task<br />8 event tasks |
System overhead | 1.9 ms master task | Protection Type | Overload protection<br />Short-circuit |
Network Frequency | 50-60 Hz | Total useful secondary power | 24 W |
Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3<br />Electromagnetic field immunity test IEC 1000-4-3 level 3<br />Resistance to fast transient IEC 1000-4-4 level 3<br />Immunity to impulse waves IEC 1000-4-5<br />Damped oscillatory wave IEC 1000-4-12<br />Immunity to electromagnetic interference IEC 61131-2 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for operation |
Operating altitude | 0...6561.68 ft (0...2000 m) | Width | 9.6 in (244.9 mm) |
Height | 5.9 in (151 mm) | Depth | 6.0 in (152 mm) |
Net Weight | 6.00 lb(US) (2.72 kg) |
Specifications may be subject to change without notice
