Product Model

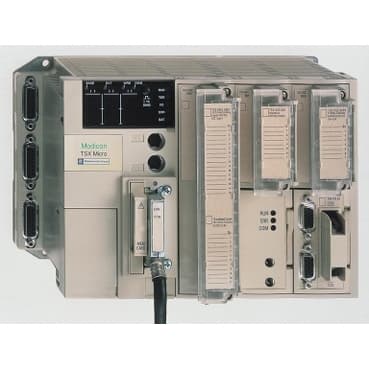

TSX3722001
Selling Points
- 1Advanced Electromagnetic Compatibility: Meets stringent standards for electrostatic discharge, electromagnetic field immunity, and resistance to fast transient, impulse waves, and damped oscillatory waves.
- 2Seamless Integration: Supports communication protocols like Uni-Telway and Modbus RTU for easy integration into existing industrial networks.
- 3Comprehensive Input/Output Capabilities: Features eight analog input channels, one analog output channel, and a discrete incremental counter for precise counting tasks.
- 4Robust Memory Architecture: Provides ample storage space with internal RAM of 20 K words and 128 K words with a PCMCIA card for program and data.
- 5Efficient Power Management: Equipped with overload protection and a total useful secondary power of 24 W, ensuring stable operation and protection against power surges and fluctuations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Modular base controller |
Primary voltage | 100...240 V 90…264 V AC | Input current | 2 mA 60 A |
Immunity to microbreaks | 20 ms | Output Current | 0.5 A |
Number of slots | 3 | Analogue input type | 0...10 V 8 |
Analogue output type | 0...10 V 1 | Counting input type | Discrete incremental counter 1 10 Hz<br />Incremental 1 10 Hz |
Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s<br />1 Modbus Modbus RTU 19.2 kbit/s | Realtime clock | With |
Memory description | Flash 15 Kwords data<br />Internal RAM 20 Kwords data<br />Internal RAM (with PCMCIA card) 128 Kwords program and data<br />Internal RAM 128 Kwords data storage | Maximum size of object areas | 128 %KWi constant words<br />256 %Mi<br />1 %MWi internal words |
Execution time per instruction | 0.13 µs Boolean without PCMCIA card<br />4.5 µs arithmetic REAL floating without PCMCIA card<br />0.19 µs Boolean with PCMCIA card<br />4.5 µs arithmetic REAL floating with PCMCIA card | Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card<br />0.27 65 % Boolean and 35 % numerical without PCMCIA card<br />4 100 % Boolean with PCMCIA card<br />0.266 65 % Boolean and 35 % numerical with PCMCIA card |
Application structure | 1 fast task<br />16 event tasks<br />1 master task | System overhead | 2.3 ms master task |
Protection Type | Overload protection<br />Short-circuit | Network Frequency | 50-60 Hz |
Total useful secondary power | 24 W | Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3<br />Electromagnetic field immunity test IEC 1000-4-3 level 3<br />Resistance to fast transient IEC 1000-4-4 level 3<br />Immunity to impulse waves IEC 1000-4-5<br />Damped oscillatory wave IEC 1000-4-12<br />Immunity to electromagnetic interference IEC 61131-2 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for operation | Operating altitude | 0...6561.68 ft (0...2000 m) |
Width | 13.4 in (341.4 mm) | Height | 5.9 in (151 mm) |
Depth | 6.0 in (152 mm) | Net Weight | 3.86 lb(US) (1.75 kg) |
Specifications may be subject to change without notice
